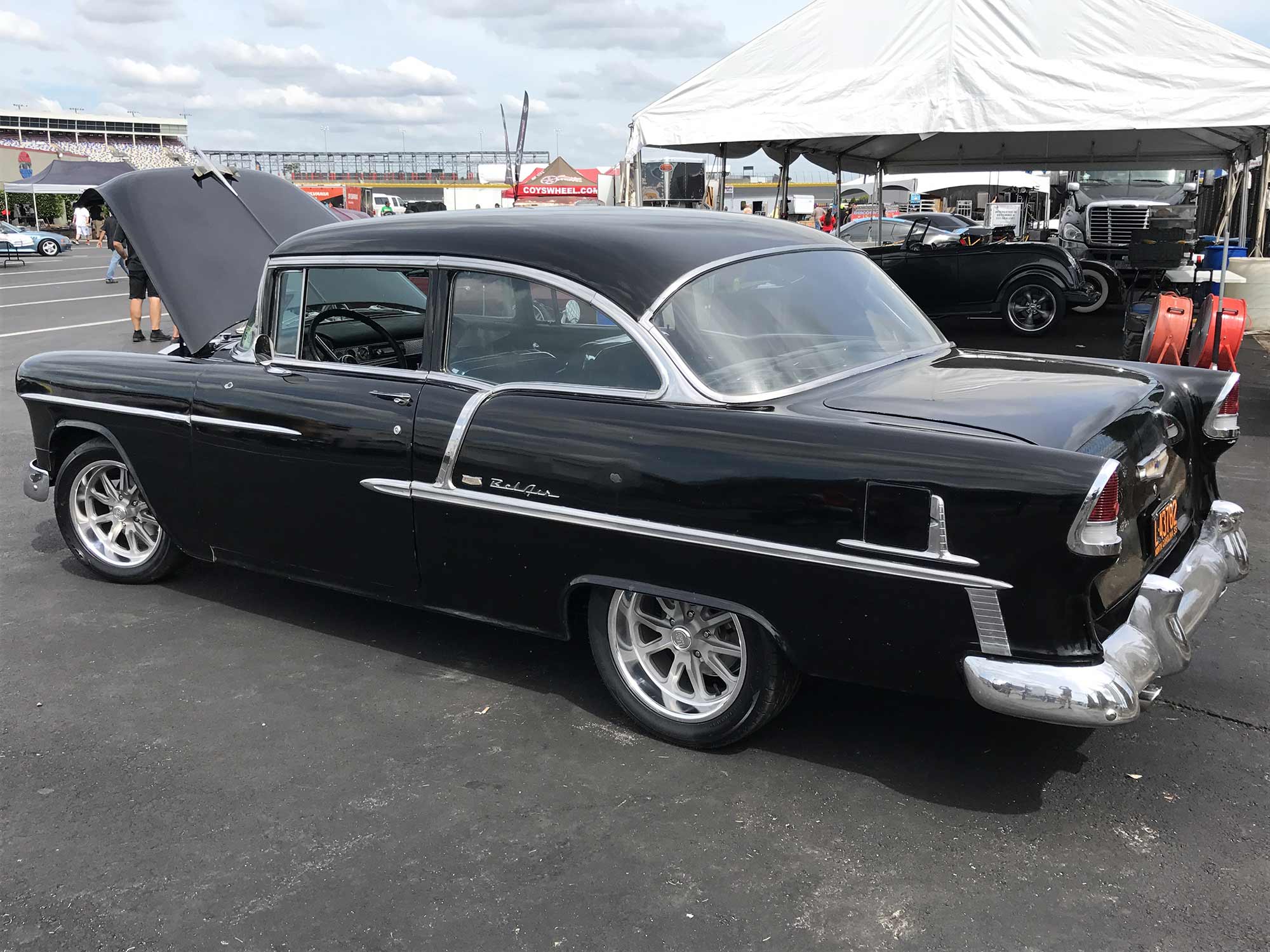

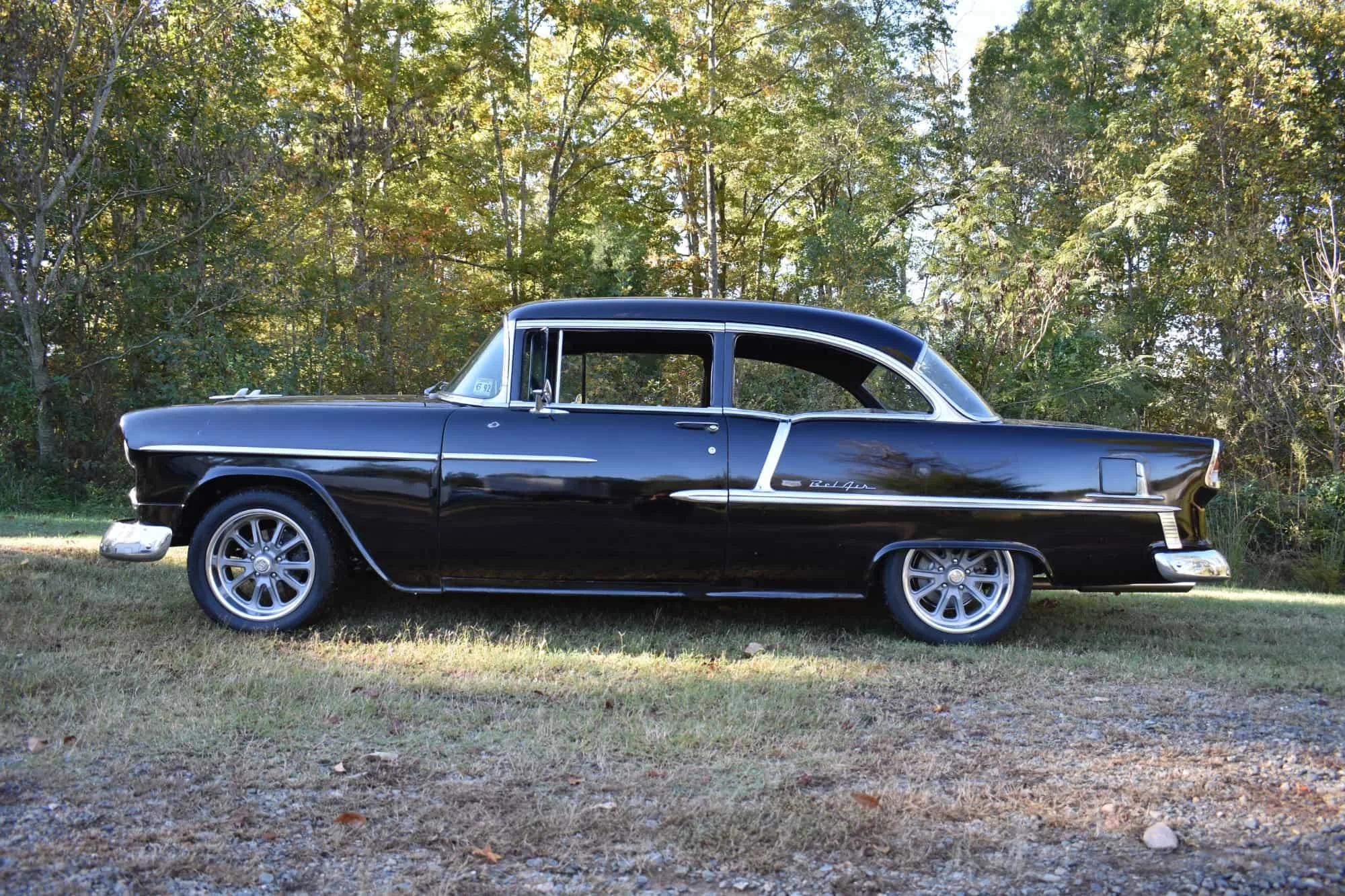

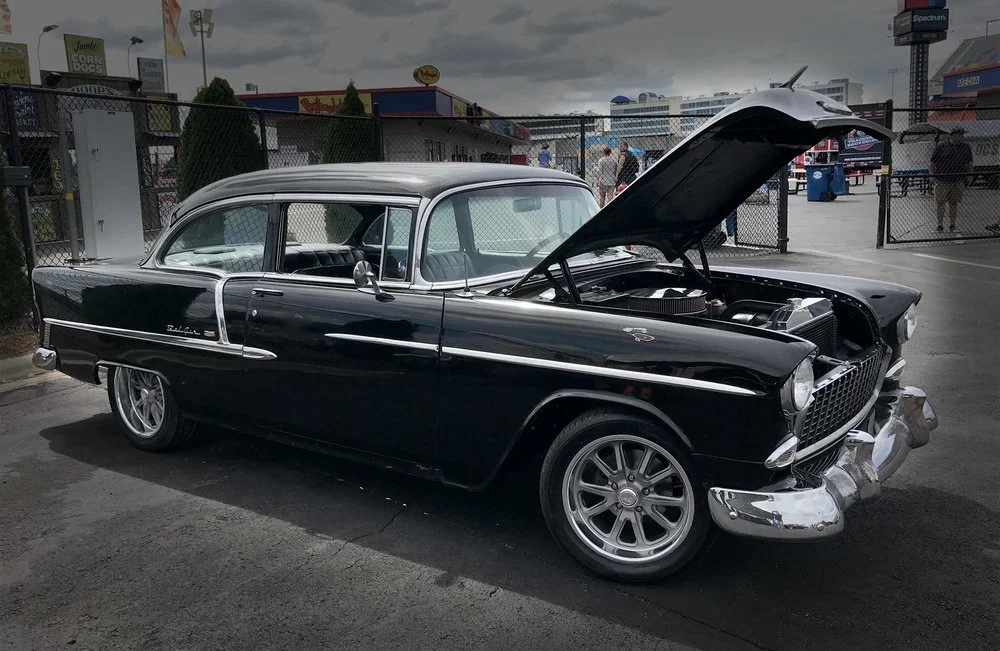

1955 Chevrolet Bel Air
A forgotten project found in pieces in a barn, brought back to life as a turn-key daily driver to enjoy the pavement once again.

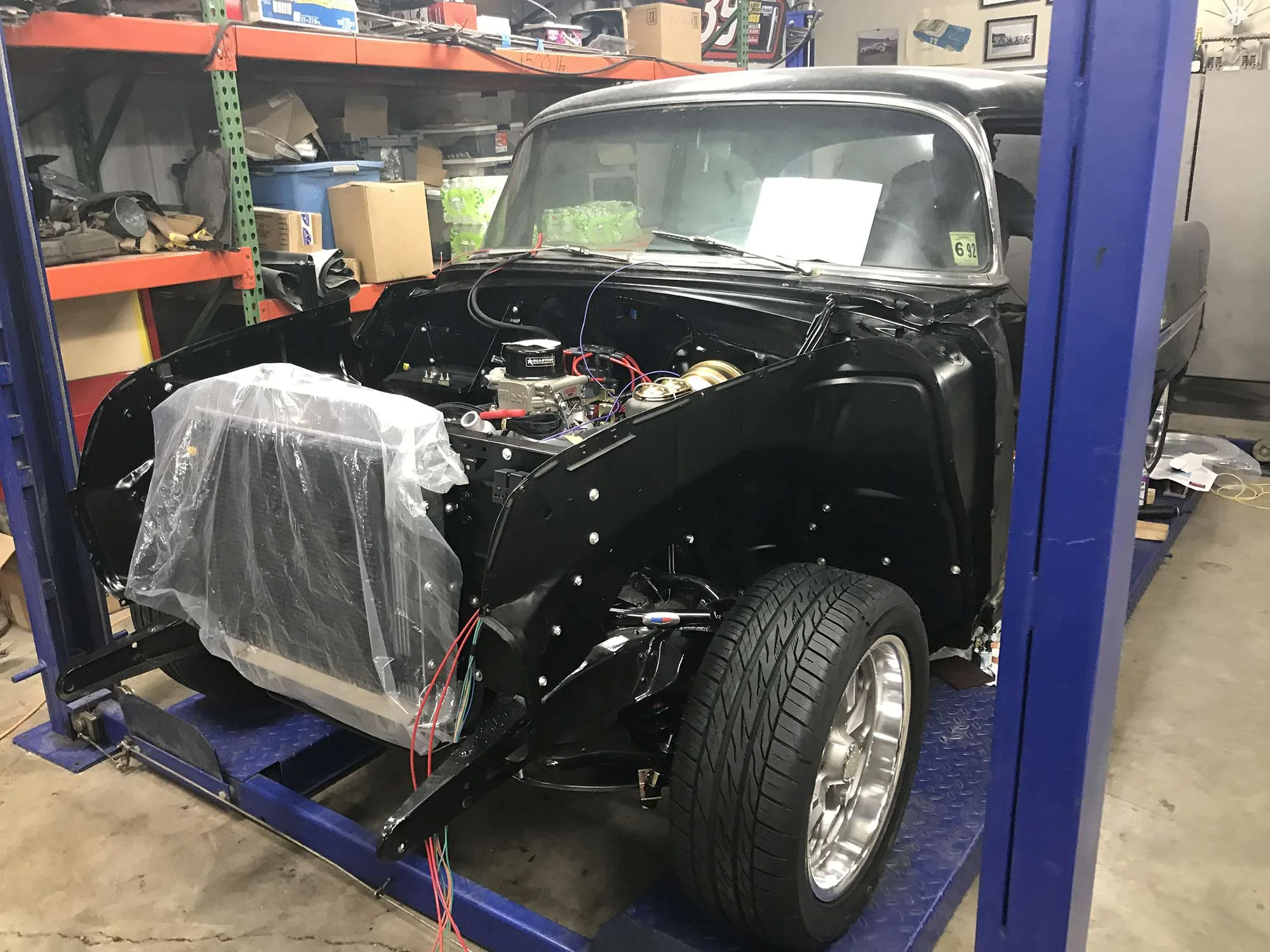

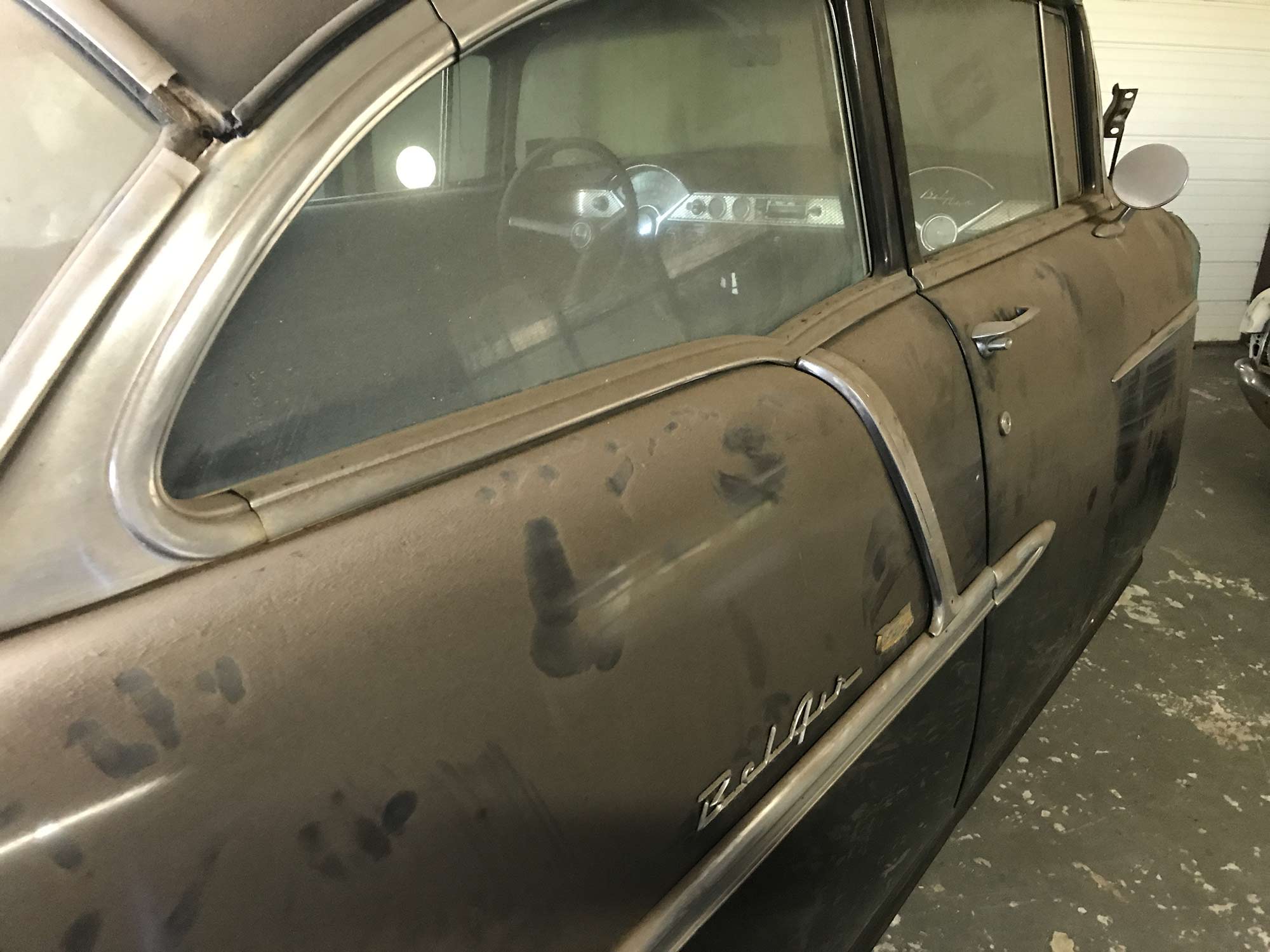

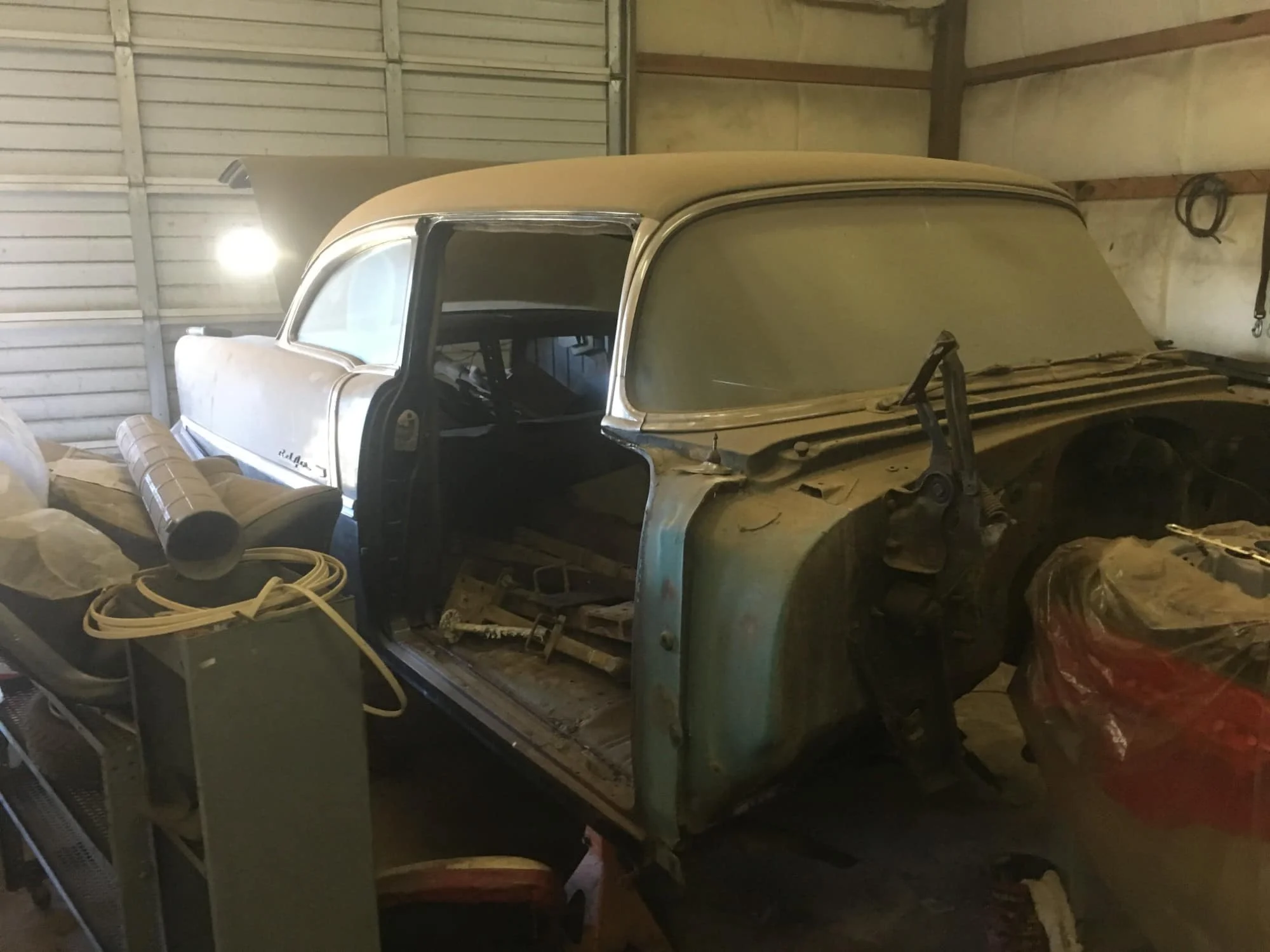

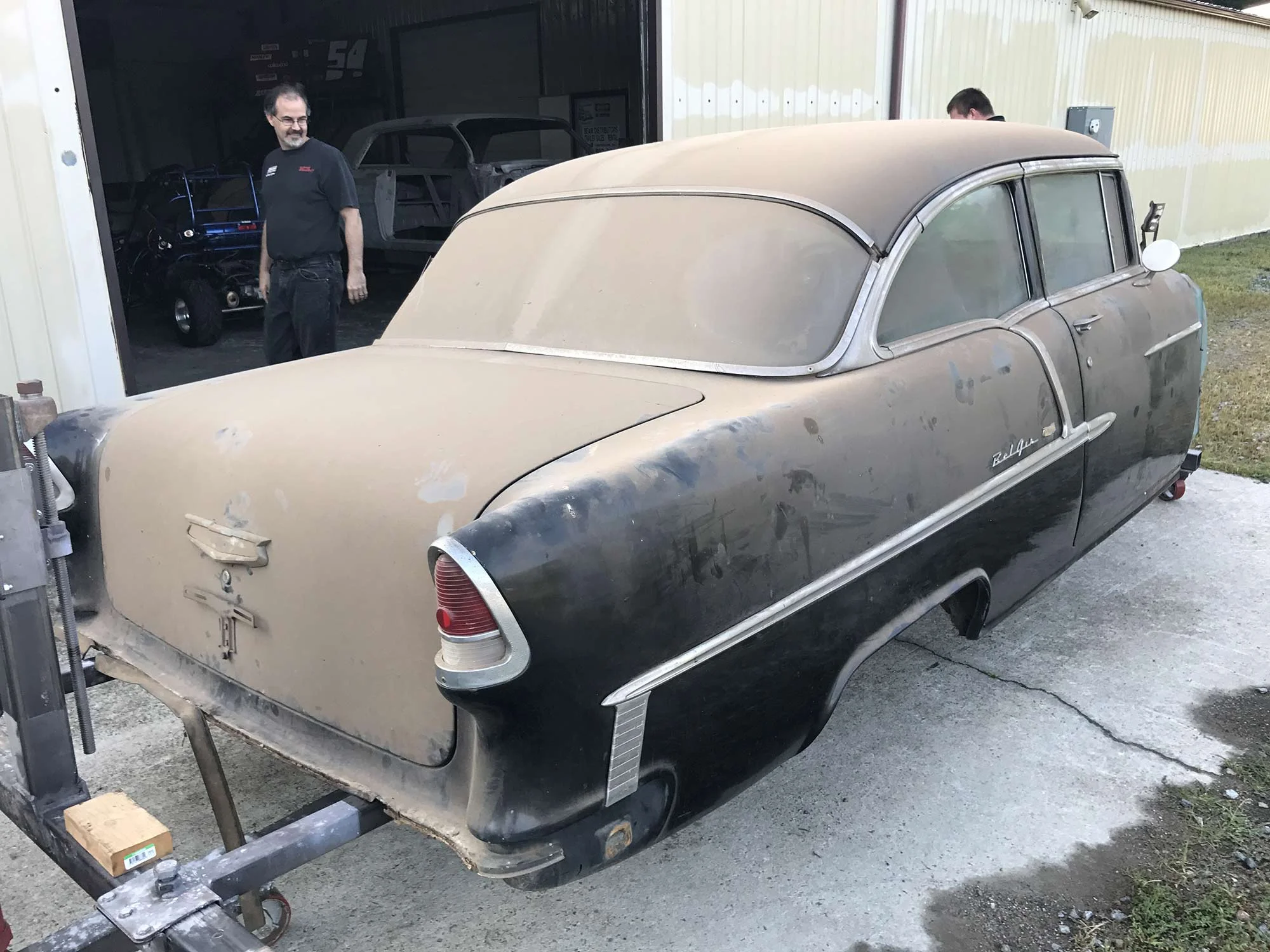

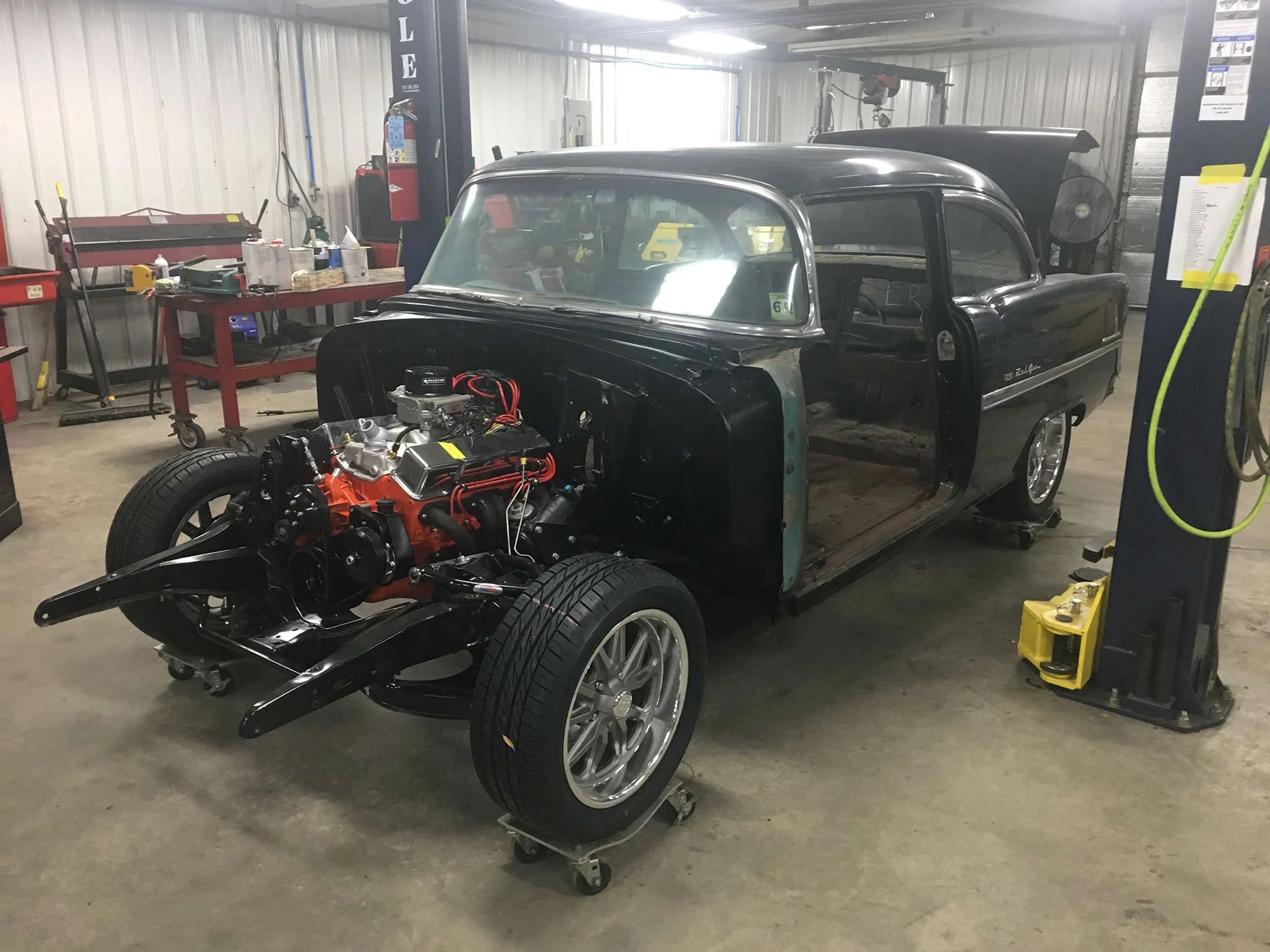

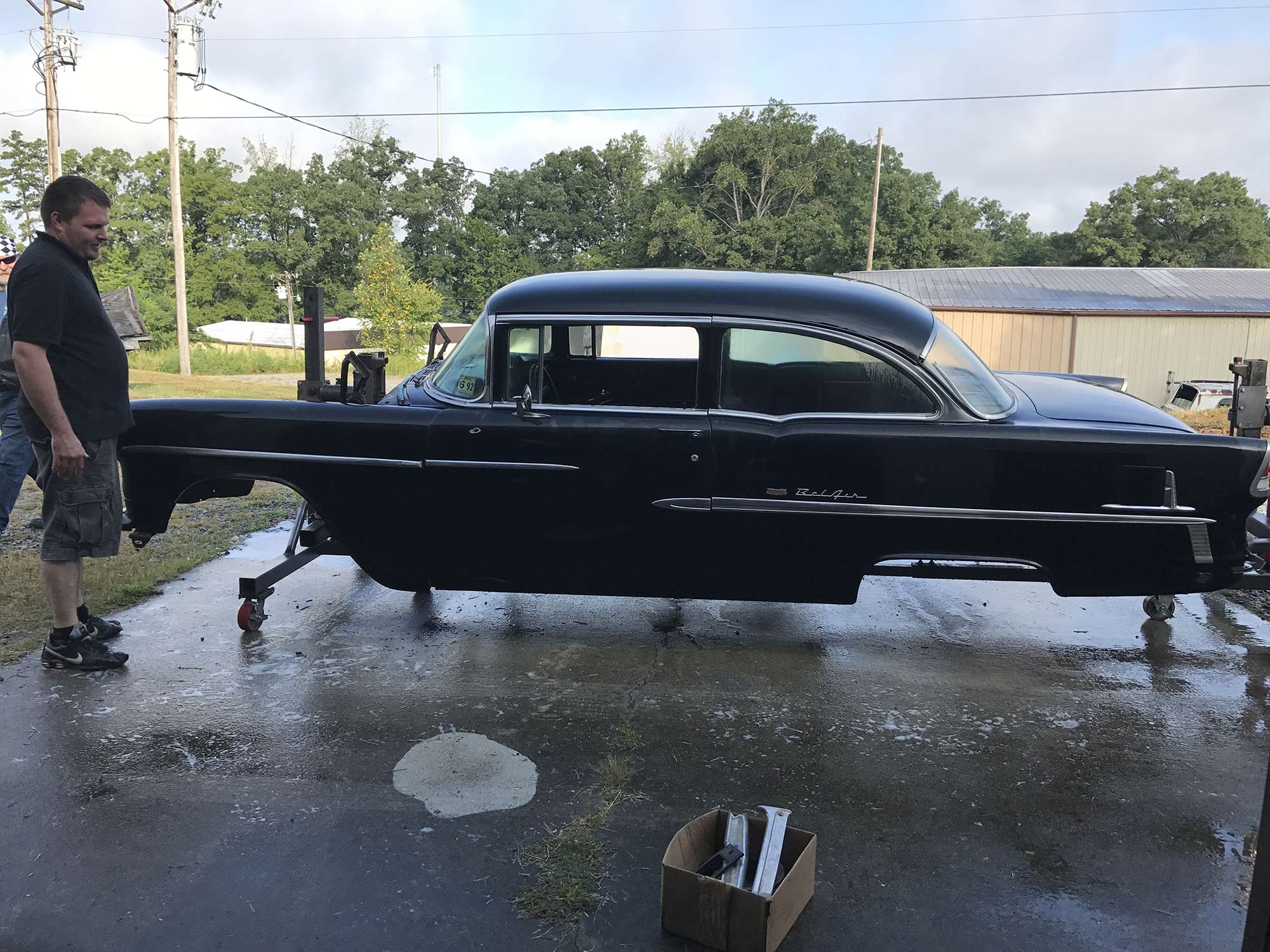

This 1955 Bel Air was located in a barn just ten minutes from the shop. We quickly loaded the dust-covered body panels and scattered interior pieces into a trailer. Once they were washed and cleaned, new hardware and weather stripping were added where needed. The shell of this once-forgotten project started to become whole again.

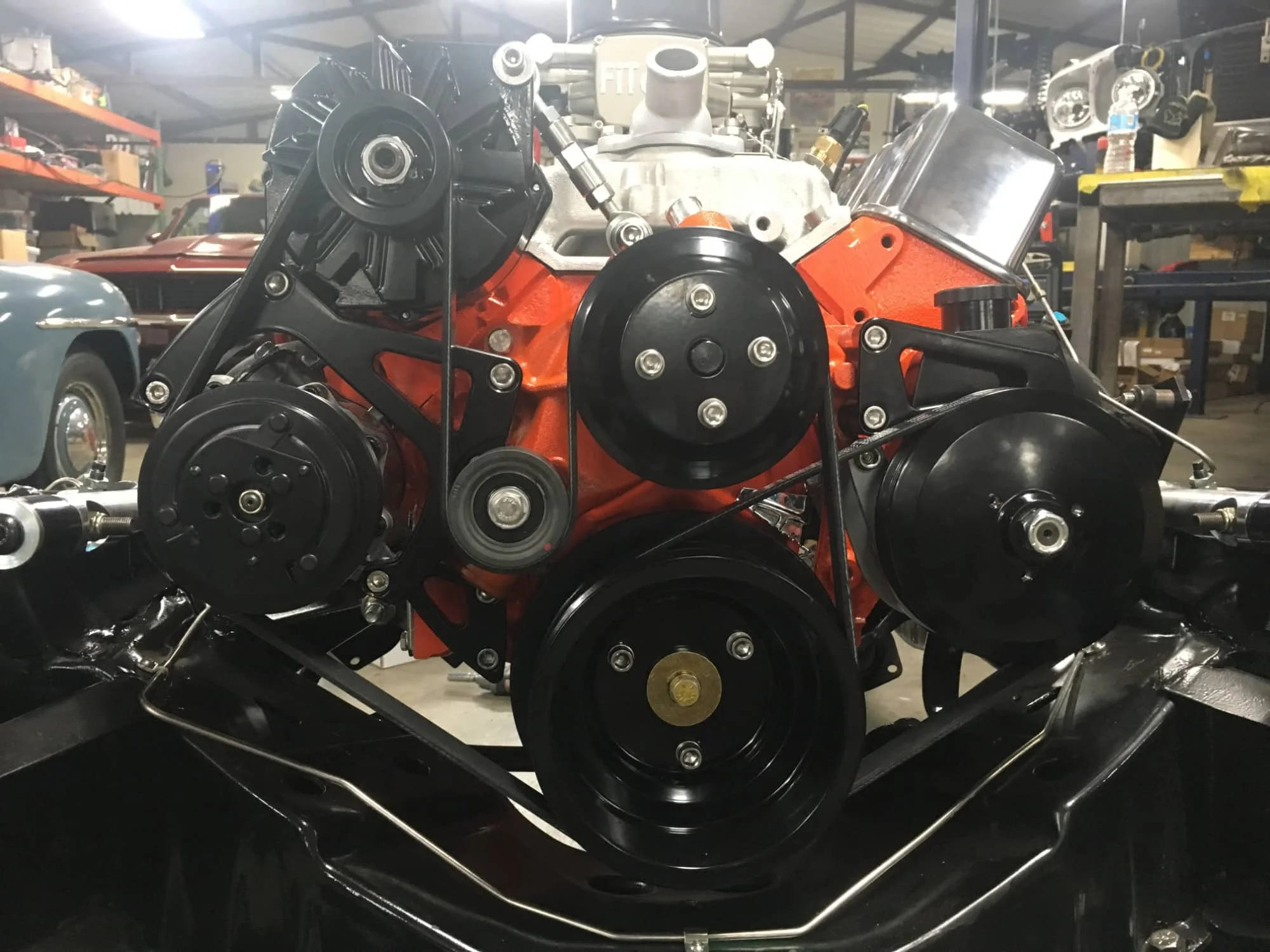

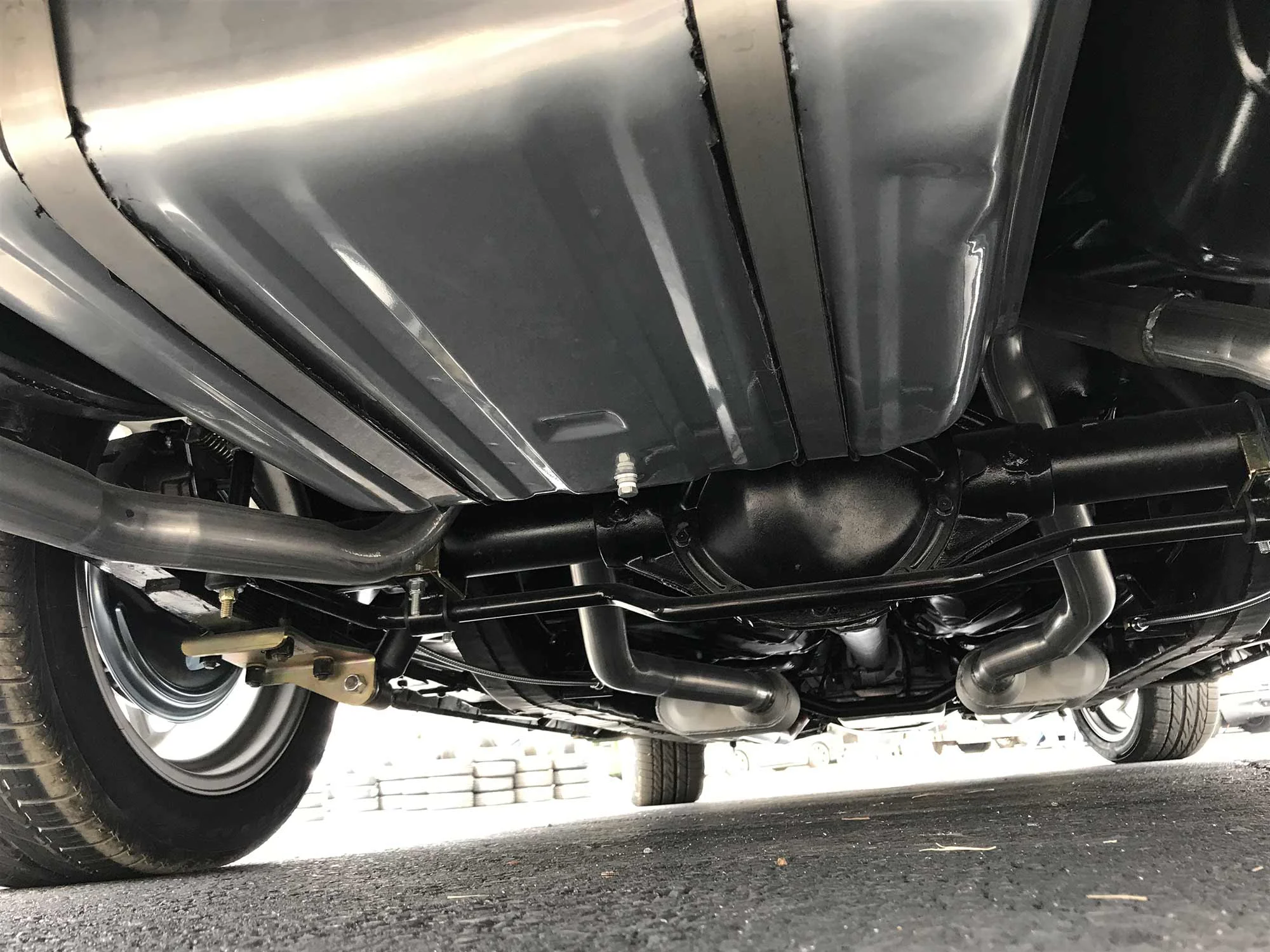

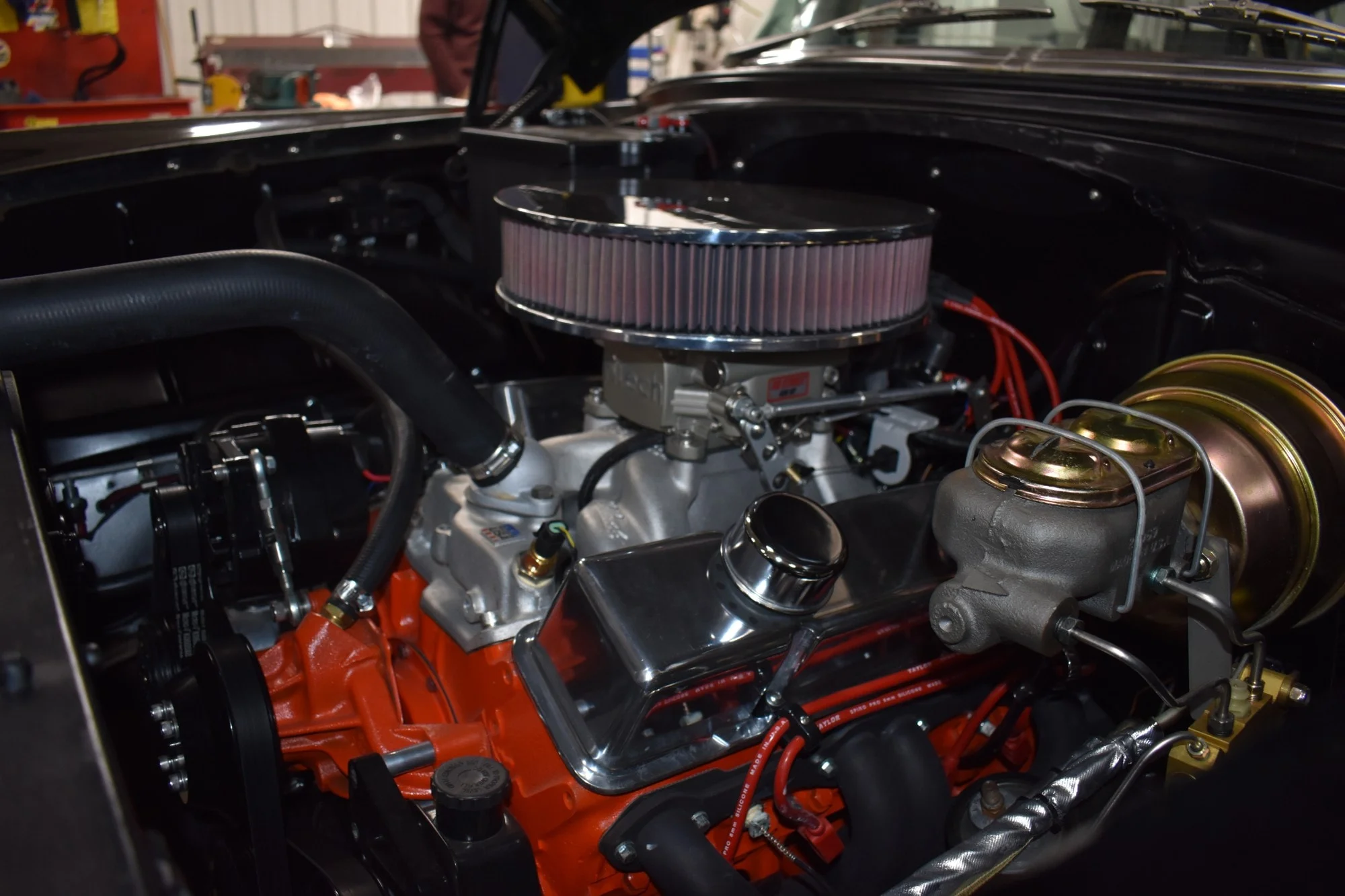

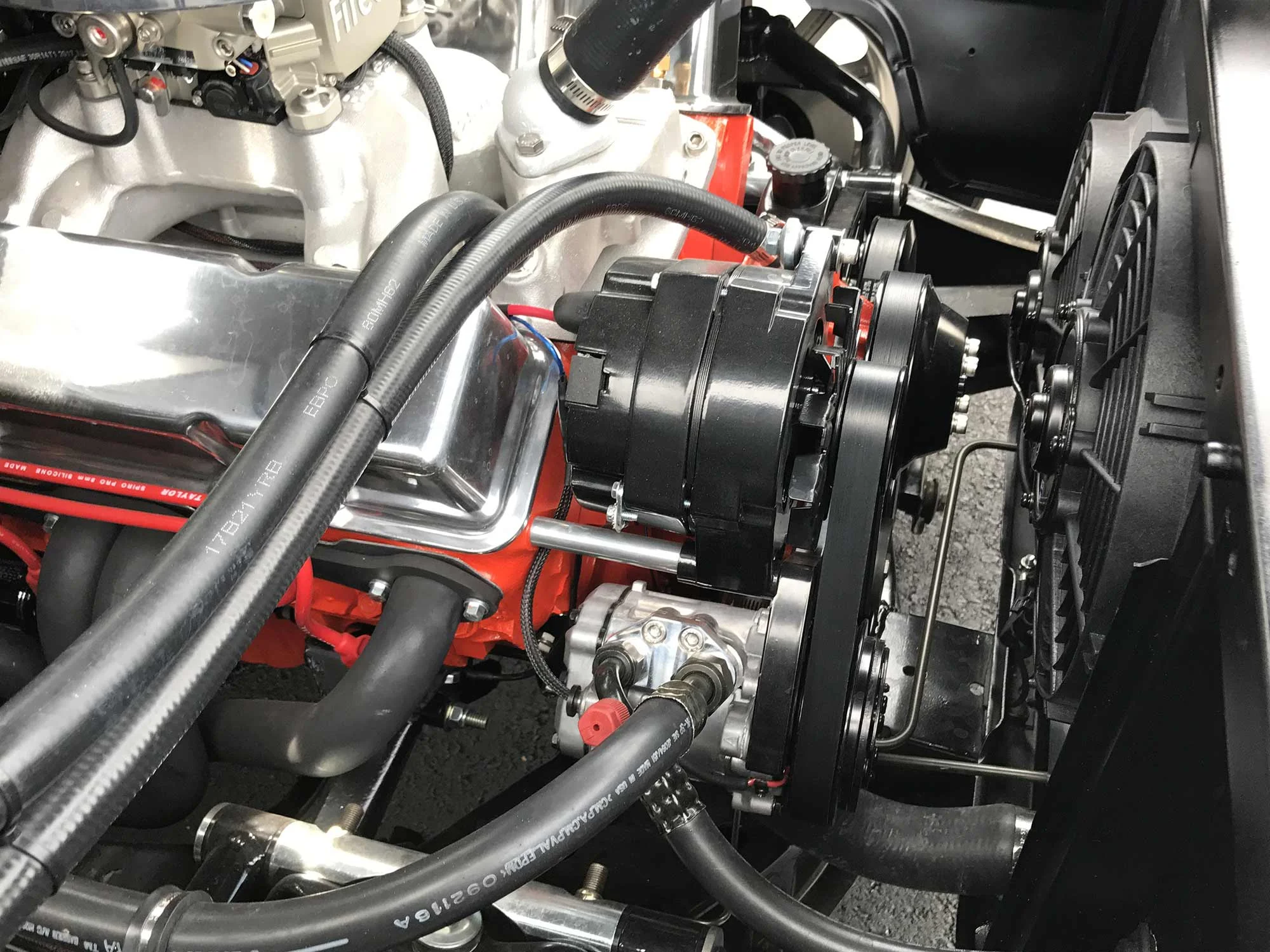

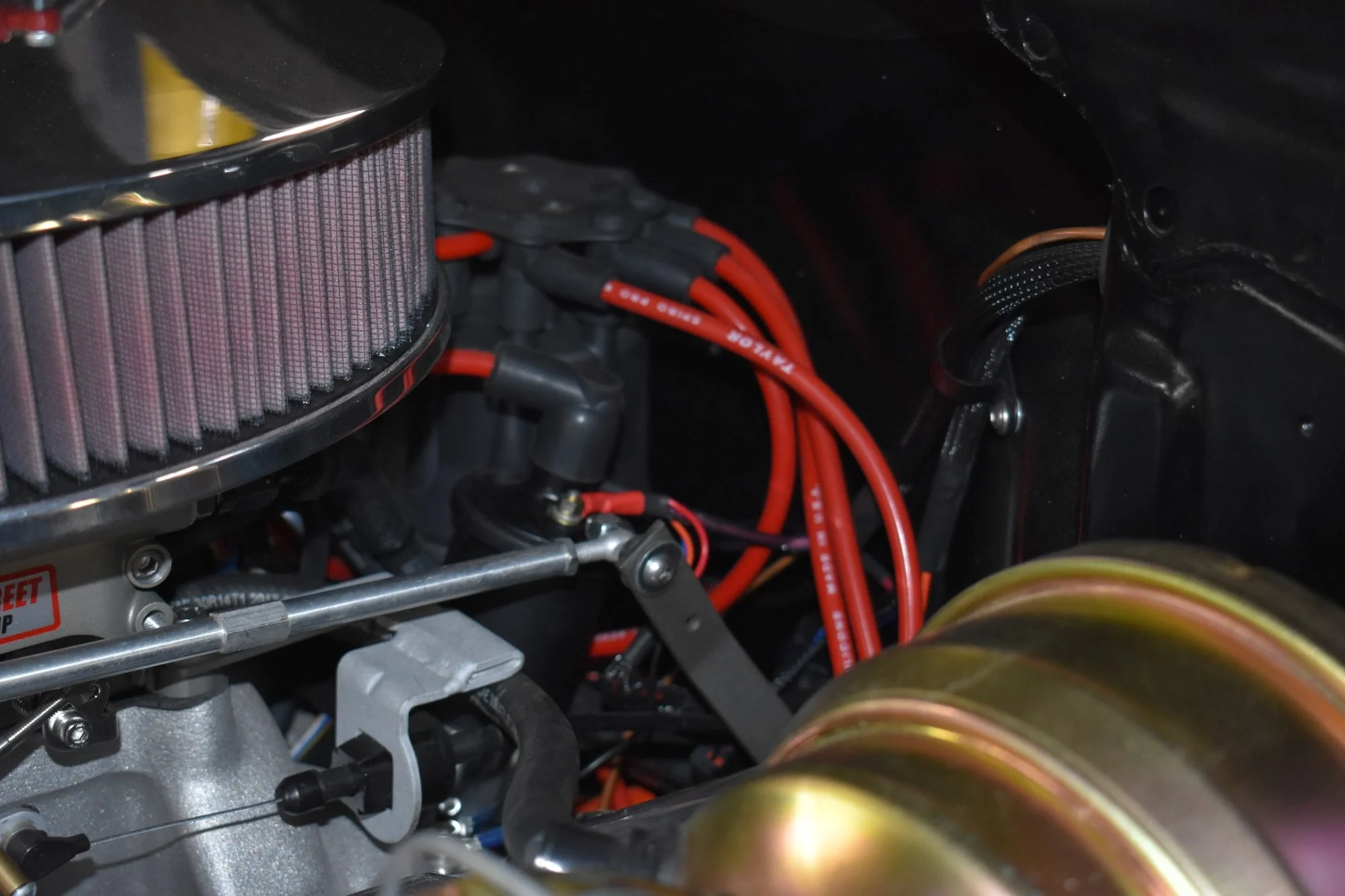

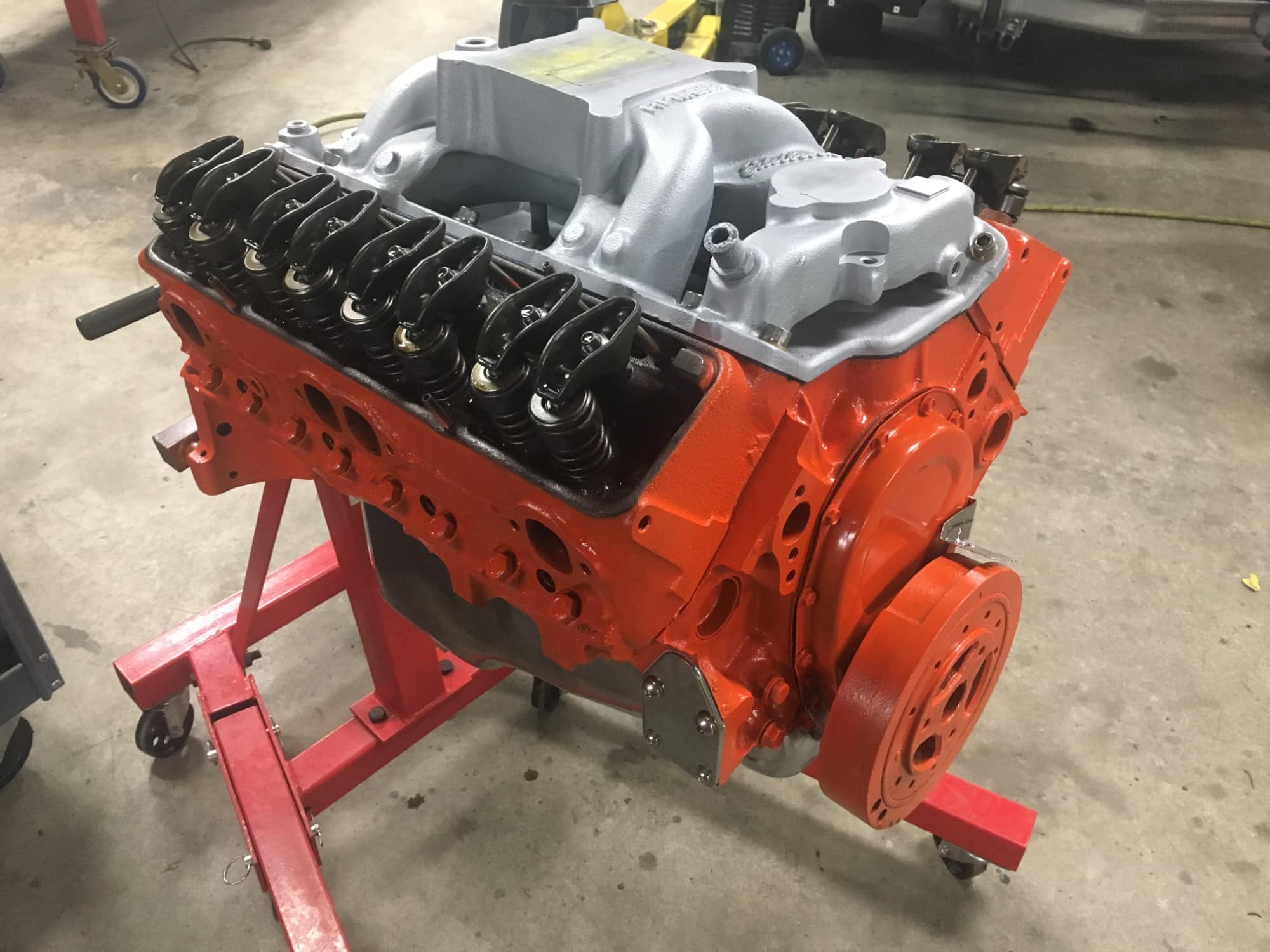

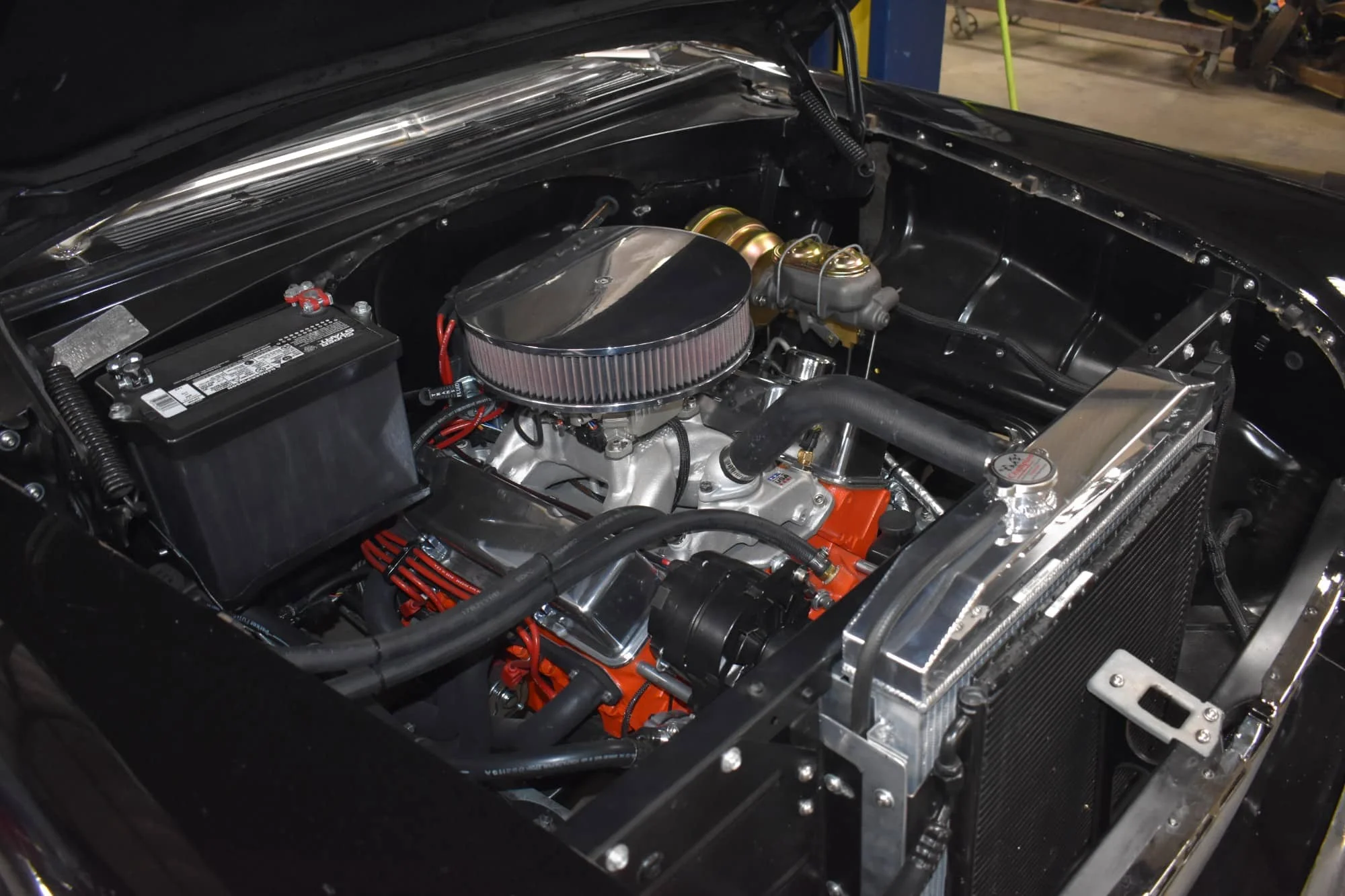

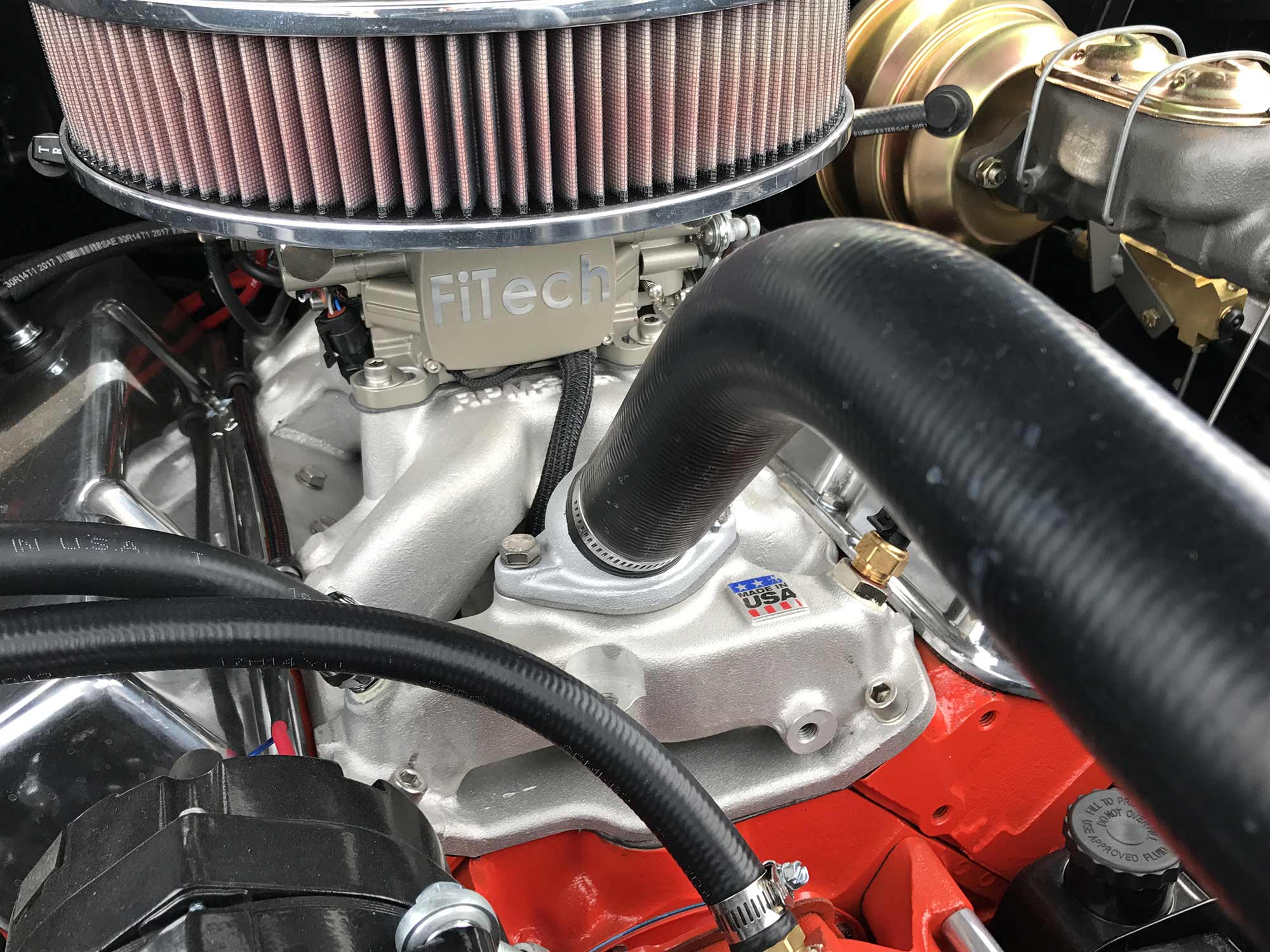

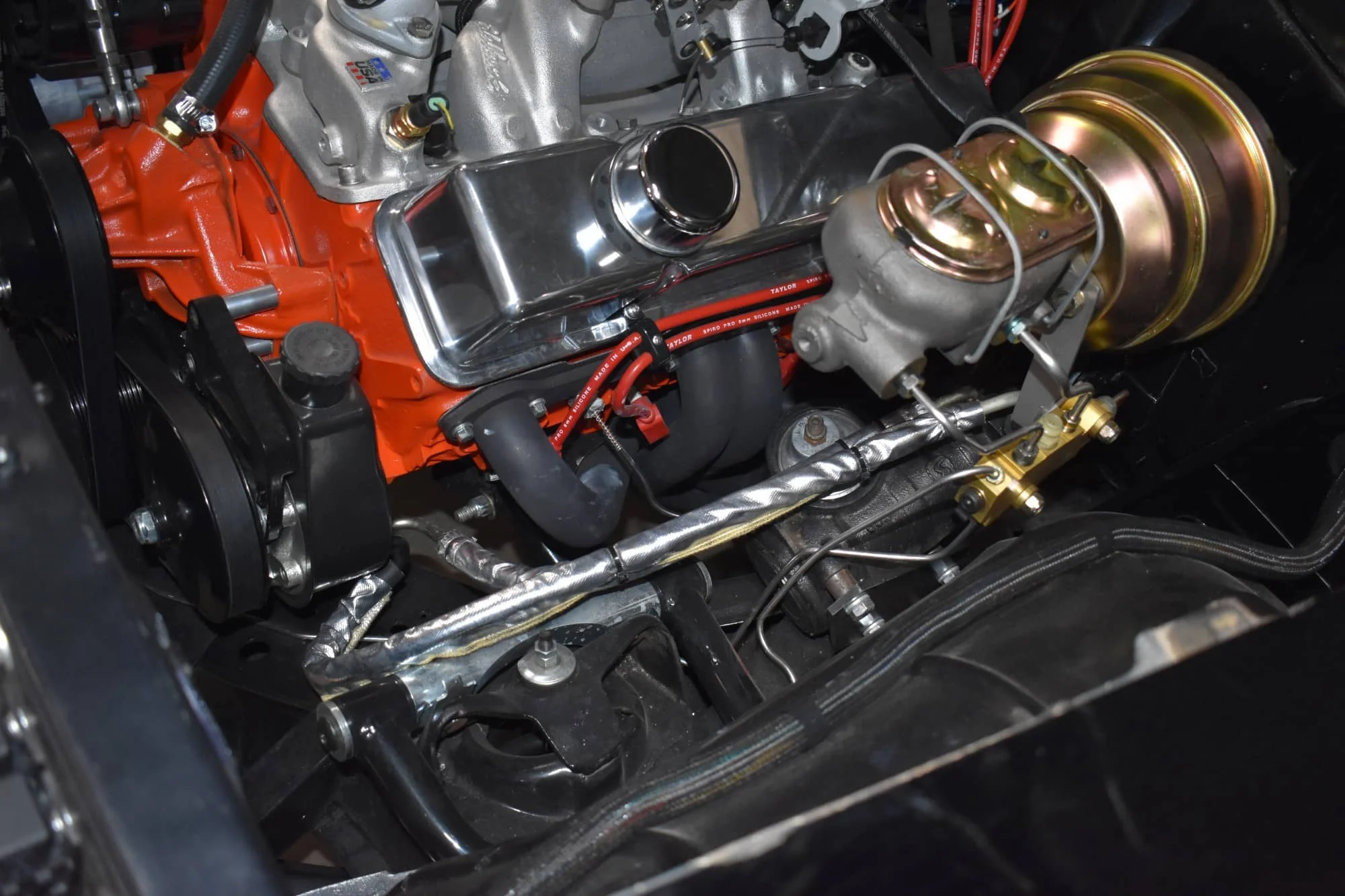

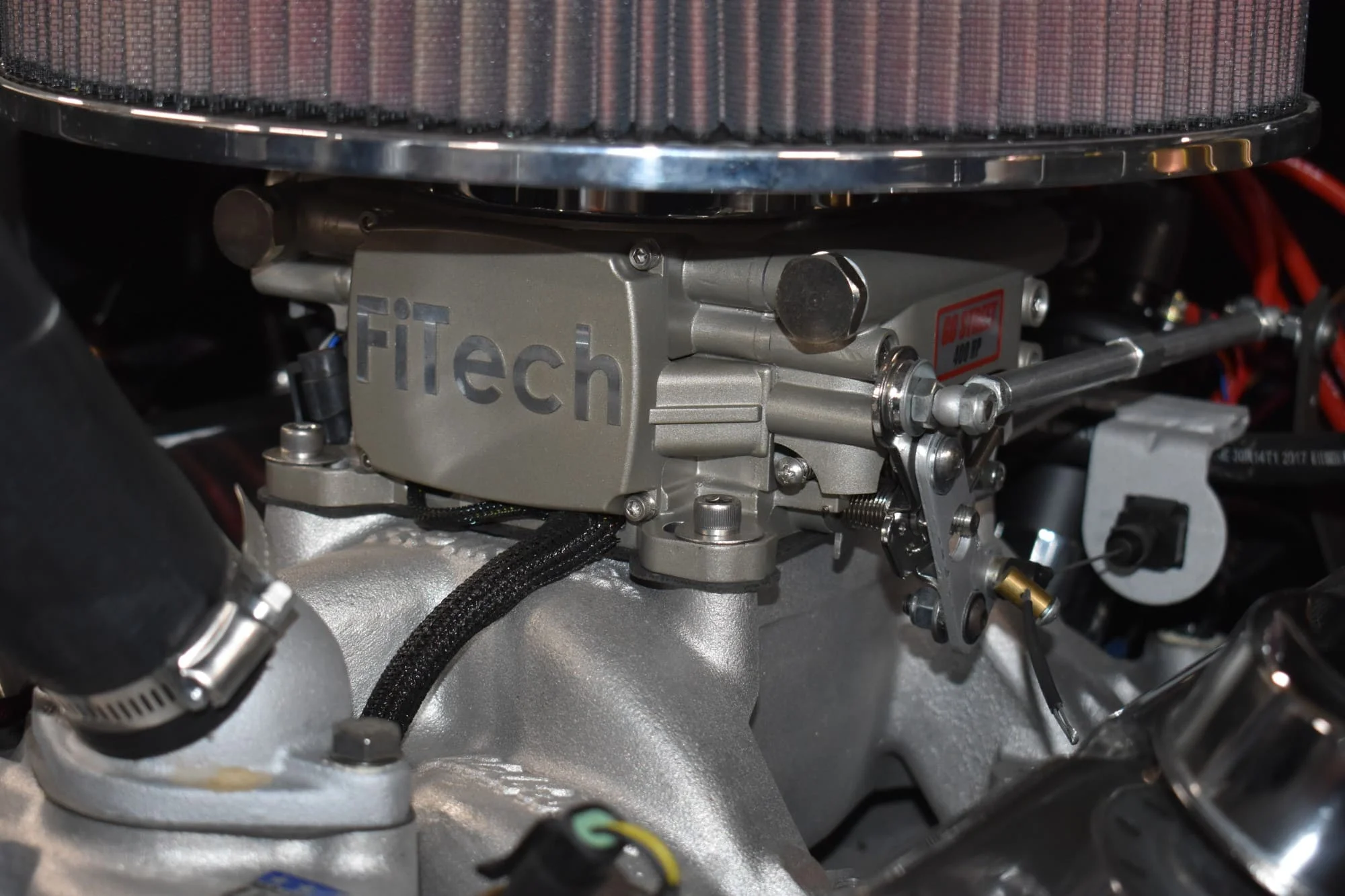

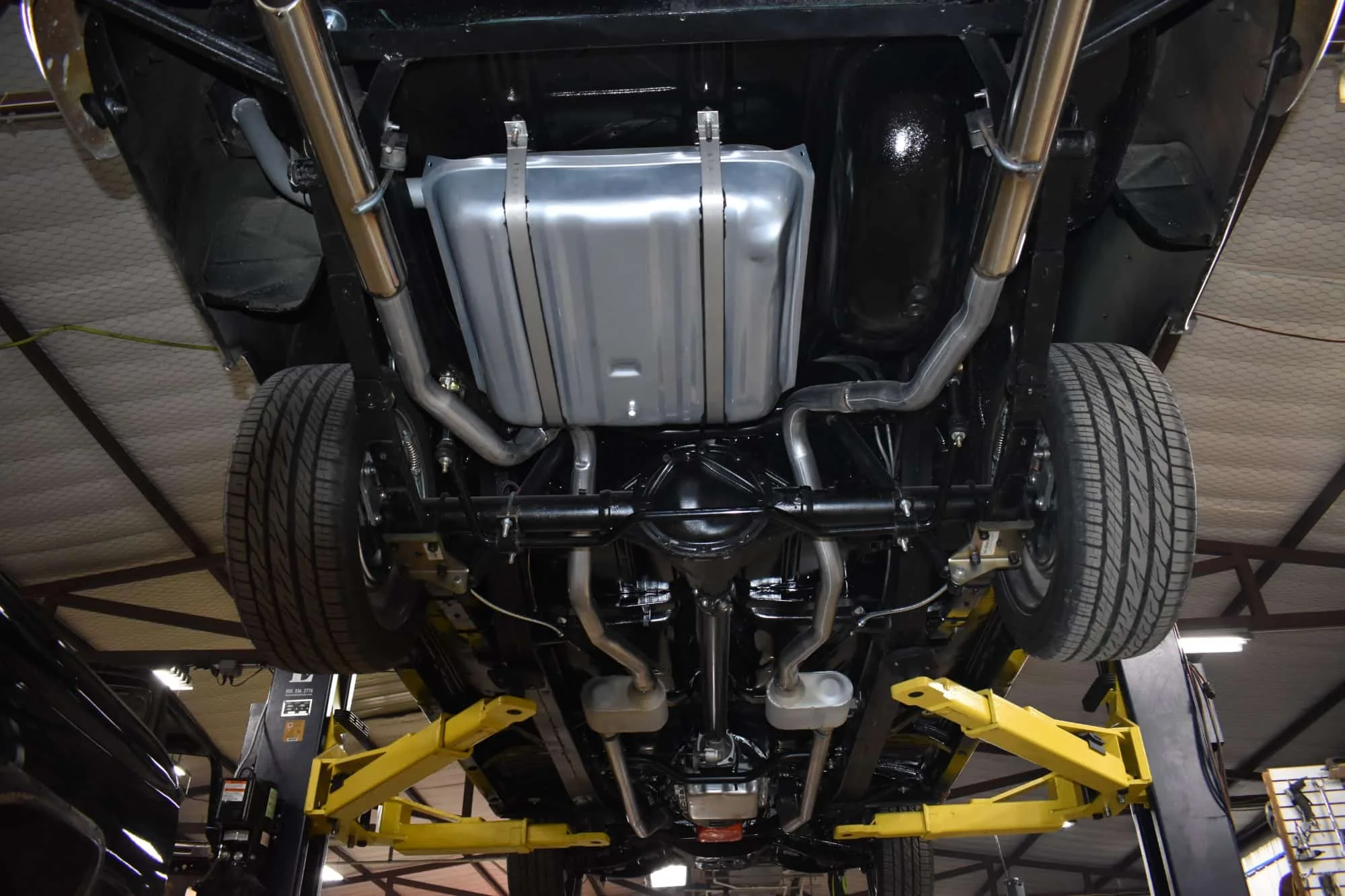

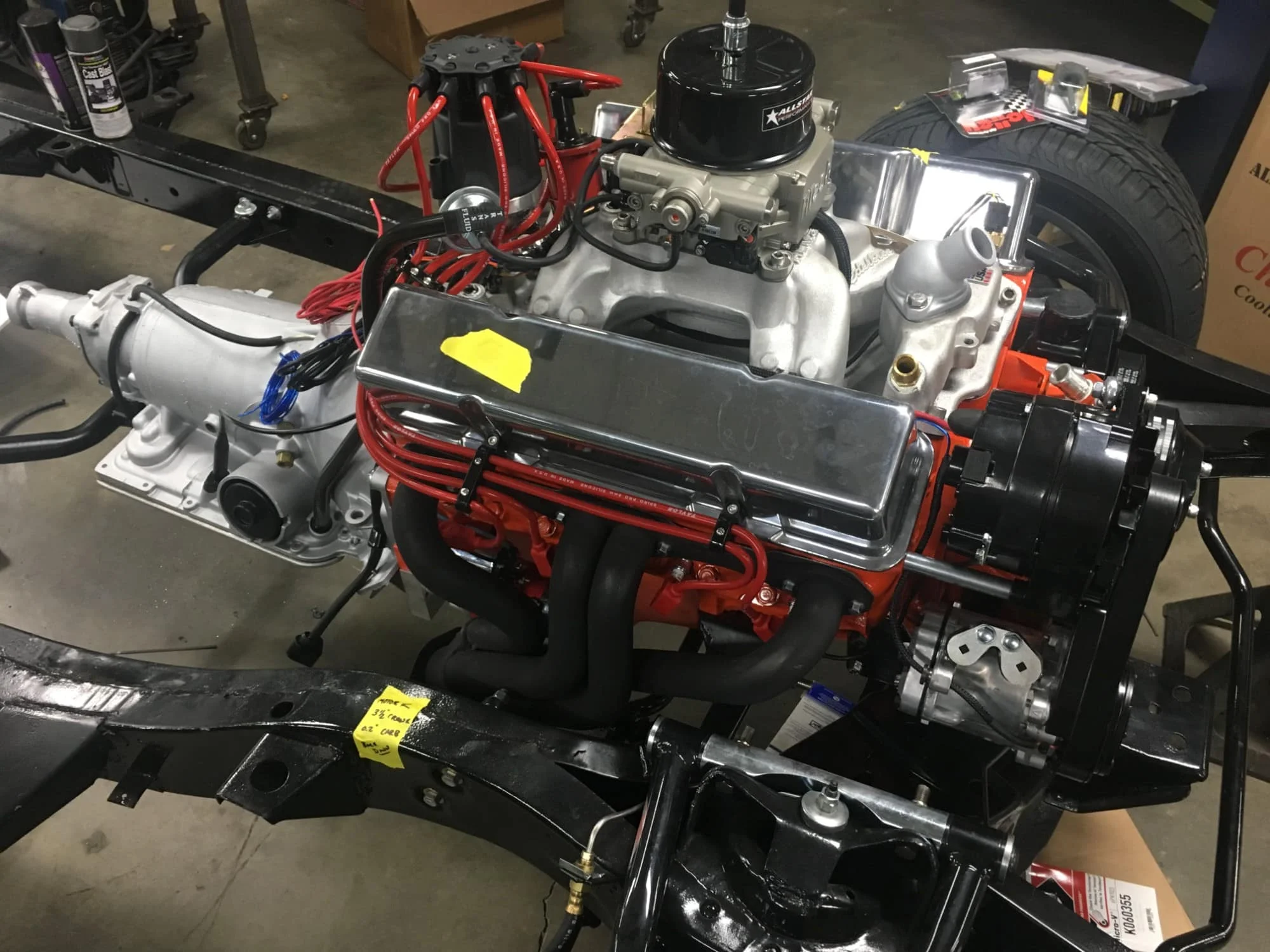

Pulling this tri-five down the highway is a freshly rebuilt small block Chevy 350cu in V8, topped with a Fi-Tech fuel injection system, Edelbrock aluminum intake, and March Performance serpentine pulley system. We used all stainless steel hardware to finish off the engine bay. A 700R4 level 2 FTI crate transmission spins a custom driveshaft to the built ’69 Camaro 10 bolt rear end, sporting a 3:73 posi unit.

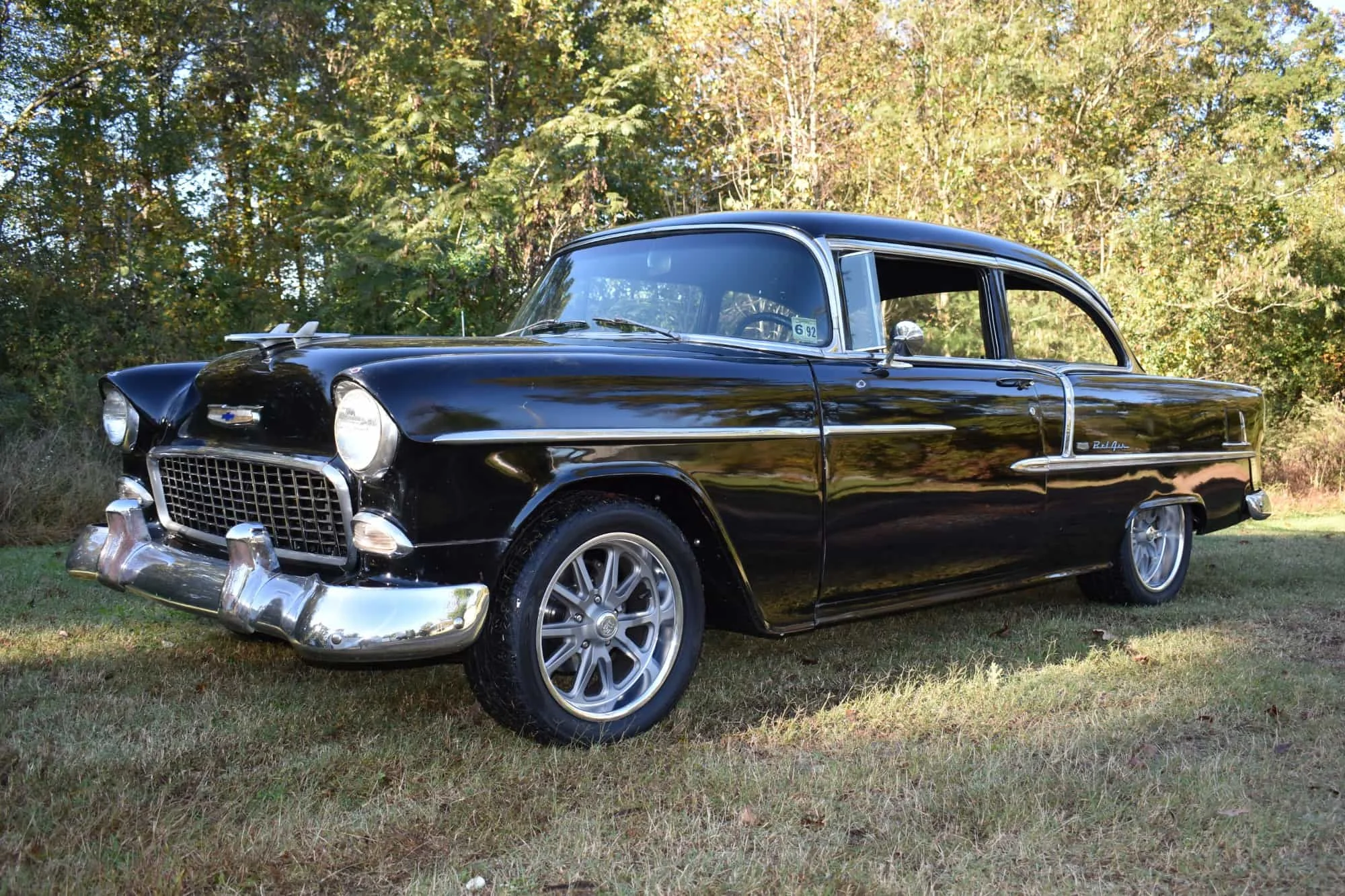

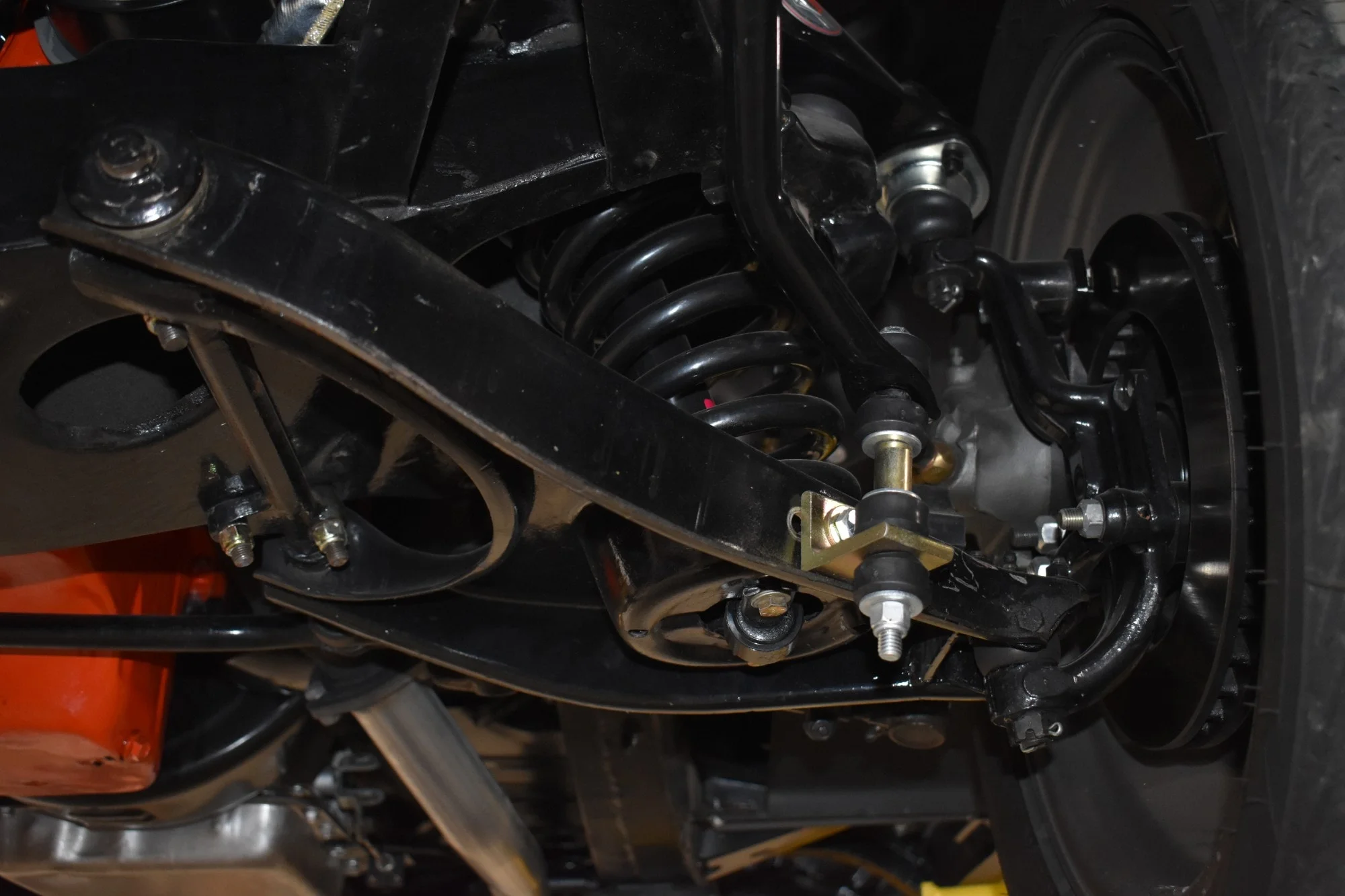

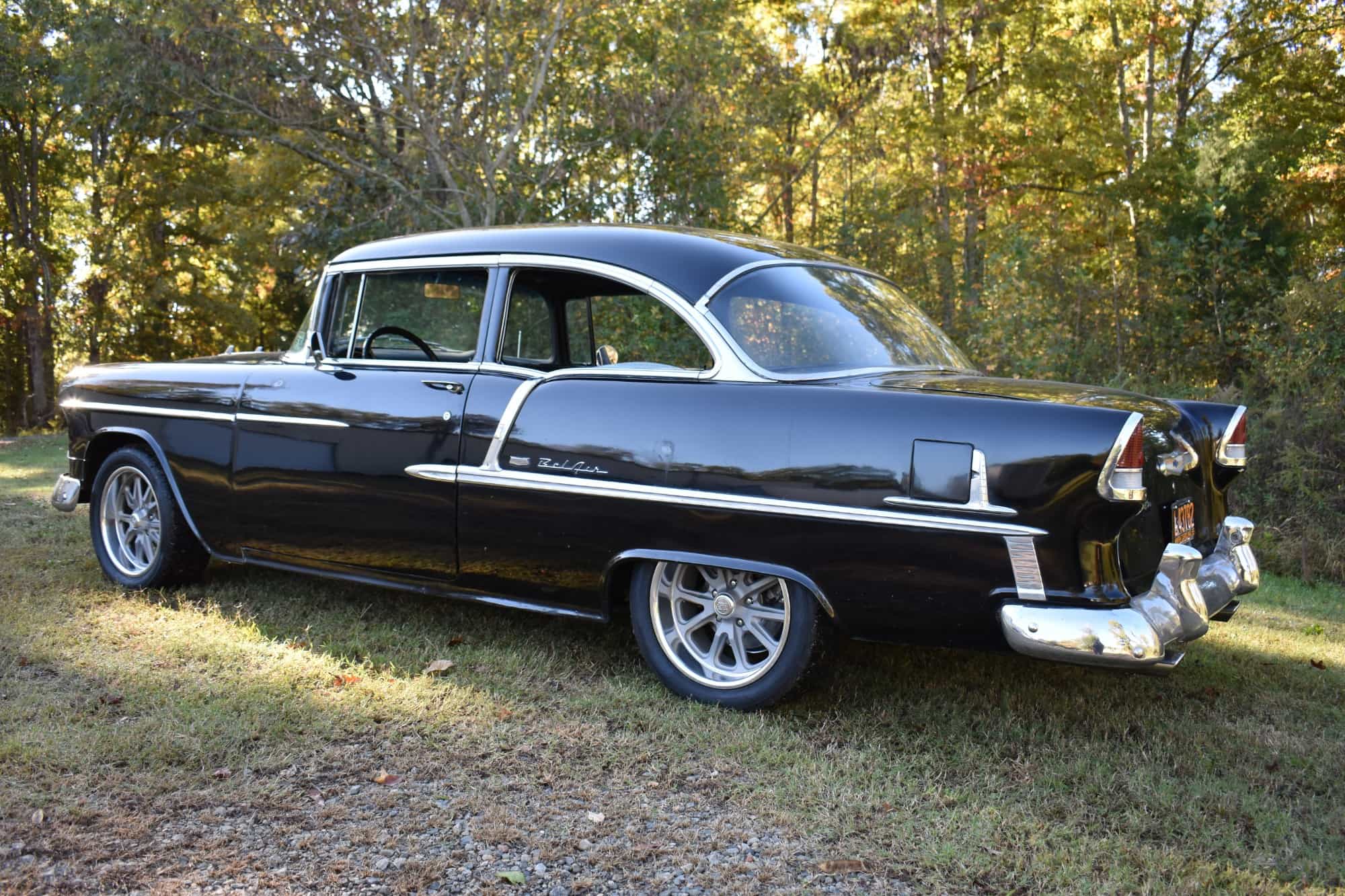

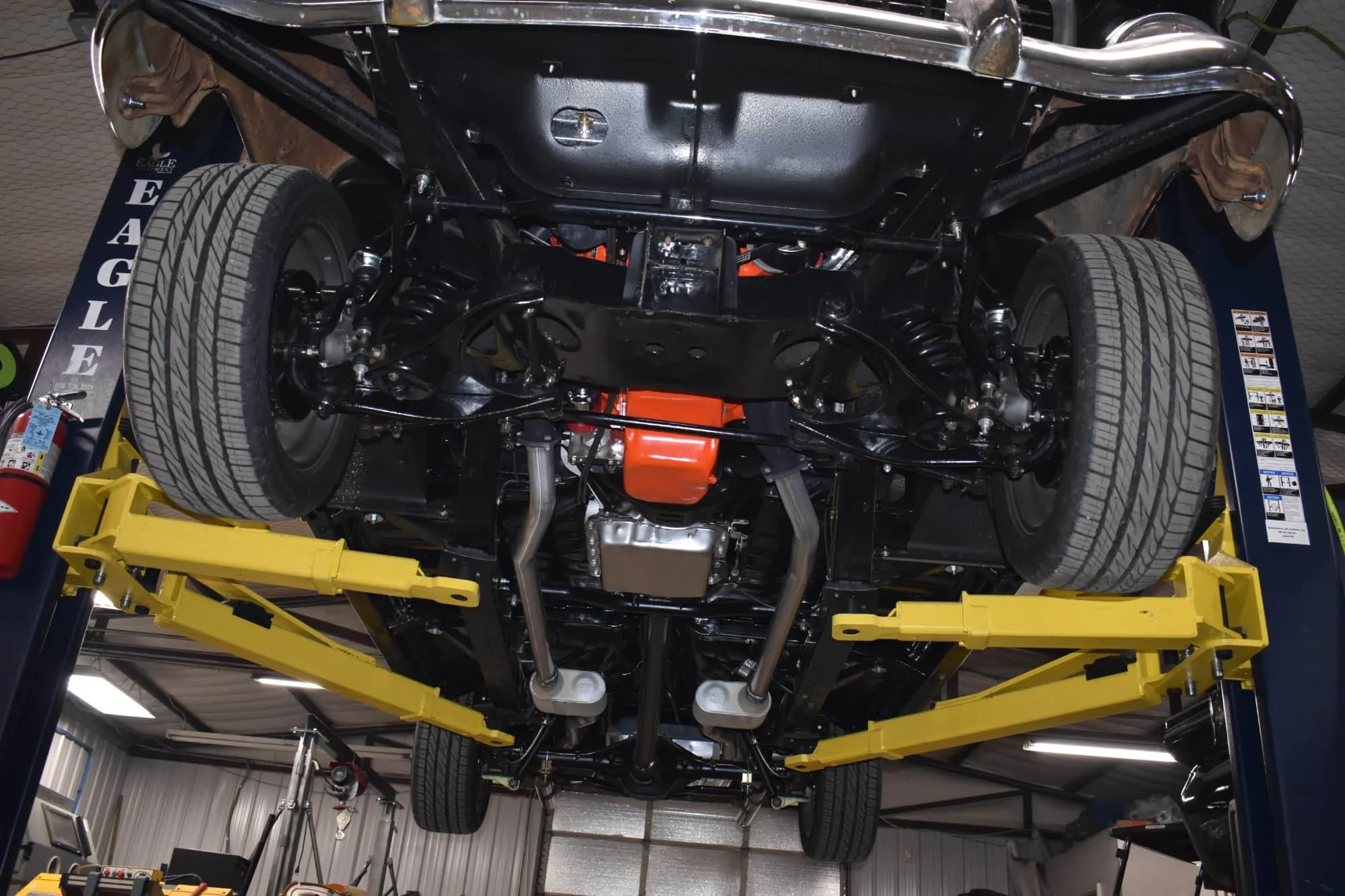

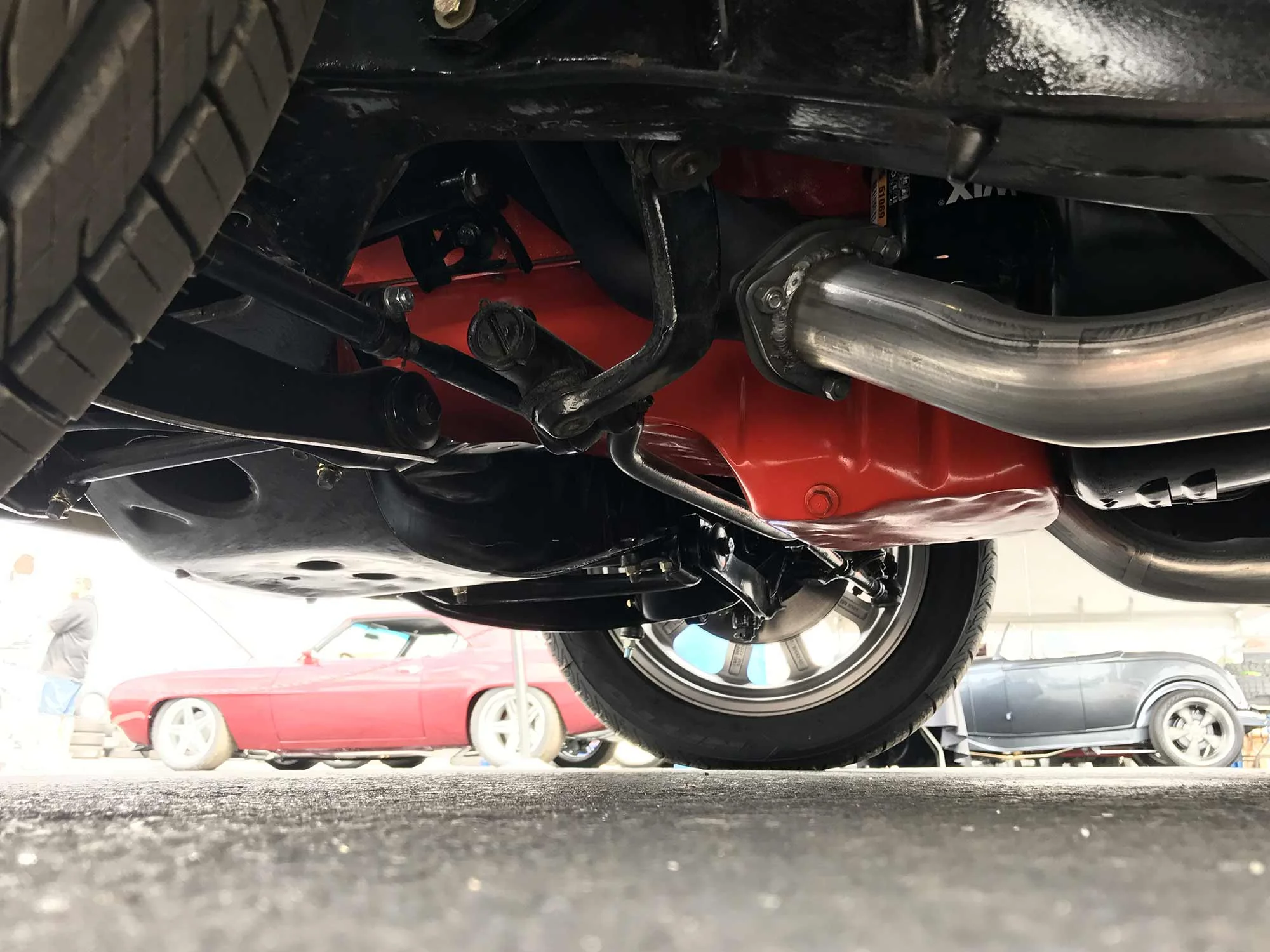

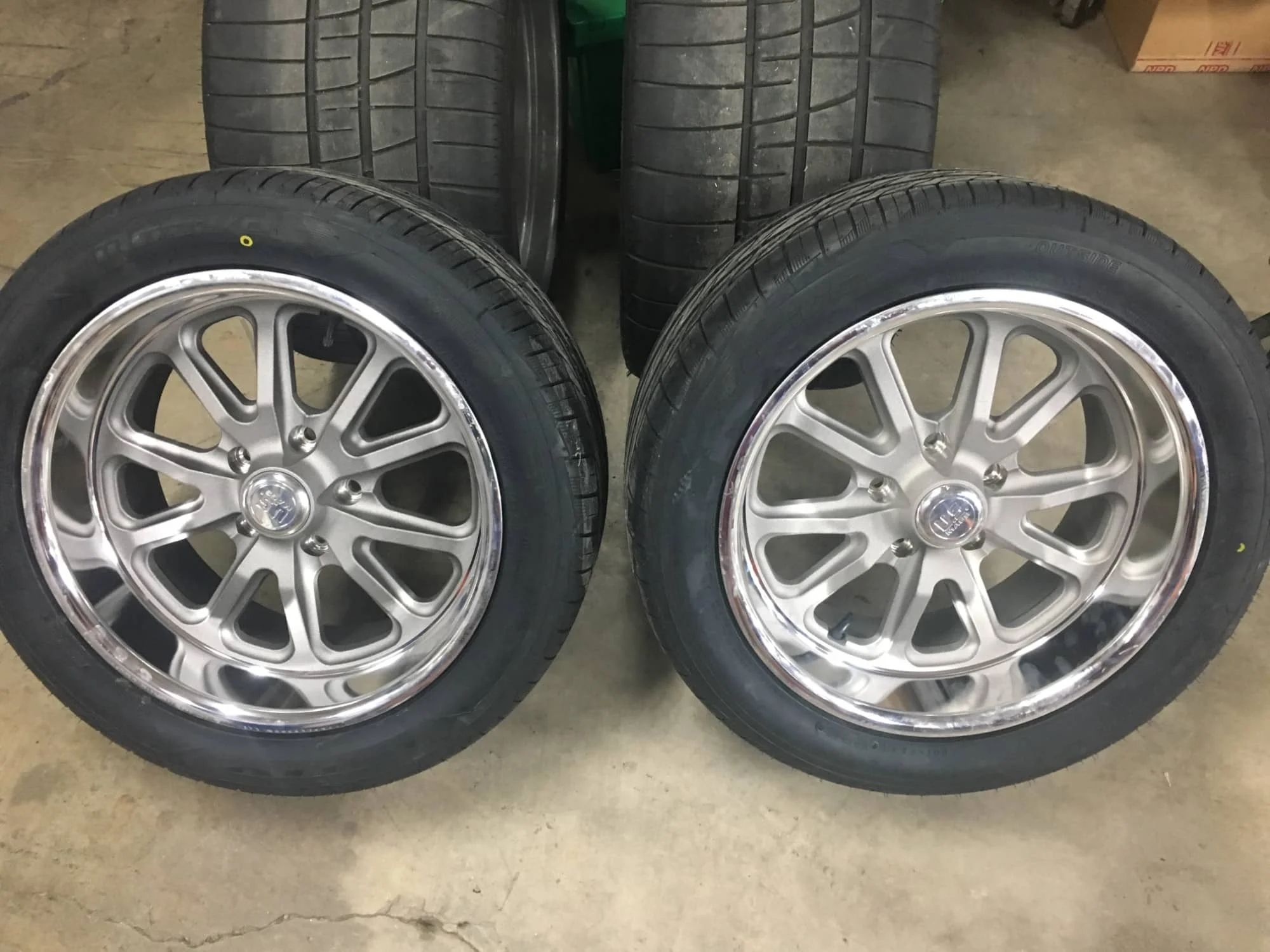

A full-powered disc brake kit brings the Bel Air to a stop. A 2” ultimate lowering kit brings the car closer to the pavement where the 17” US Mags Rambler wheels wrapped in Nitto Tires roll.

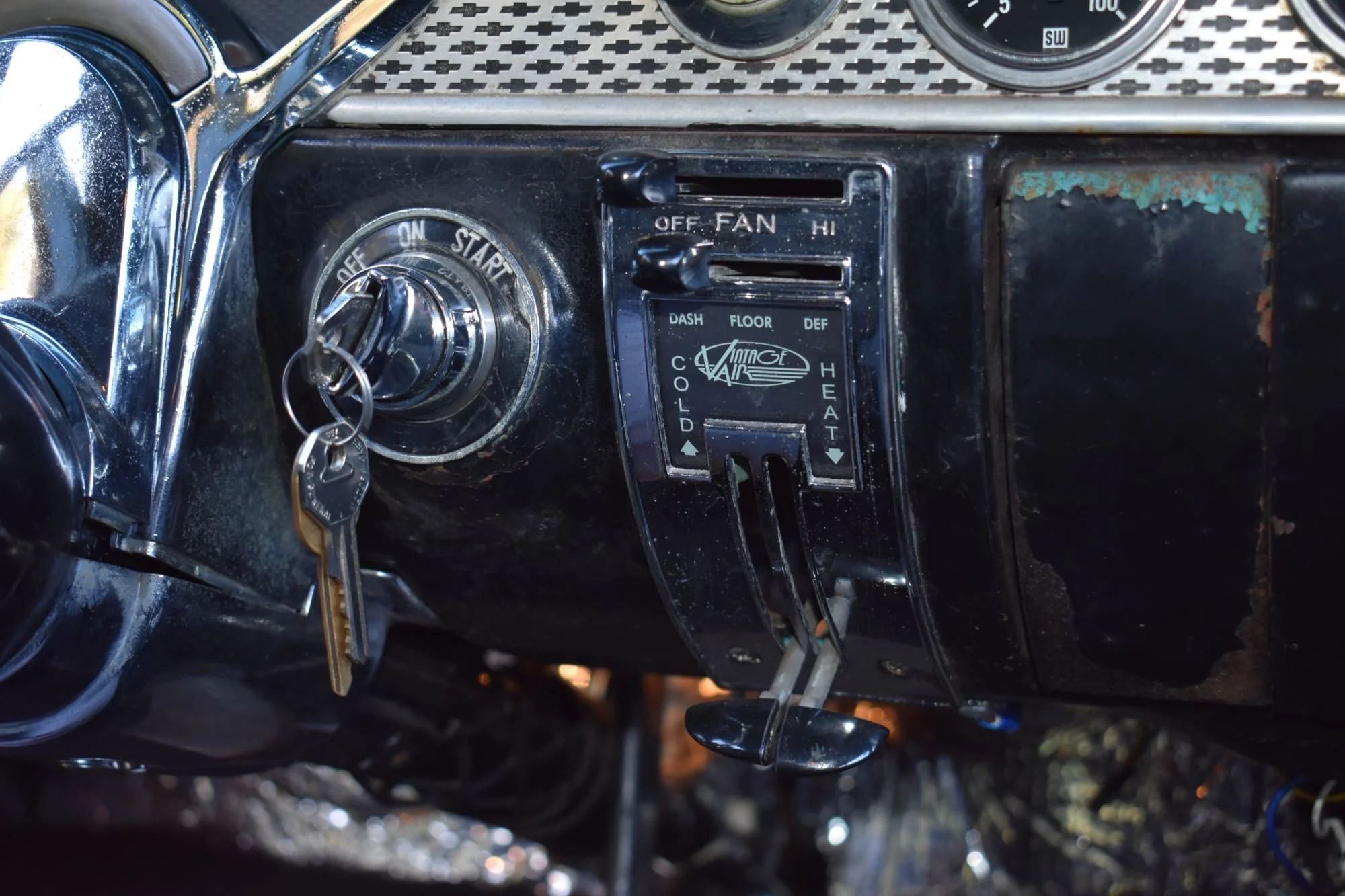

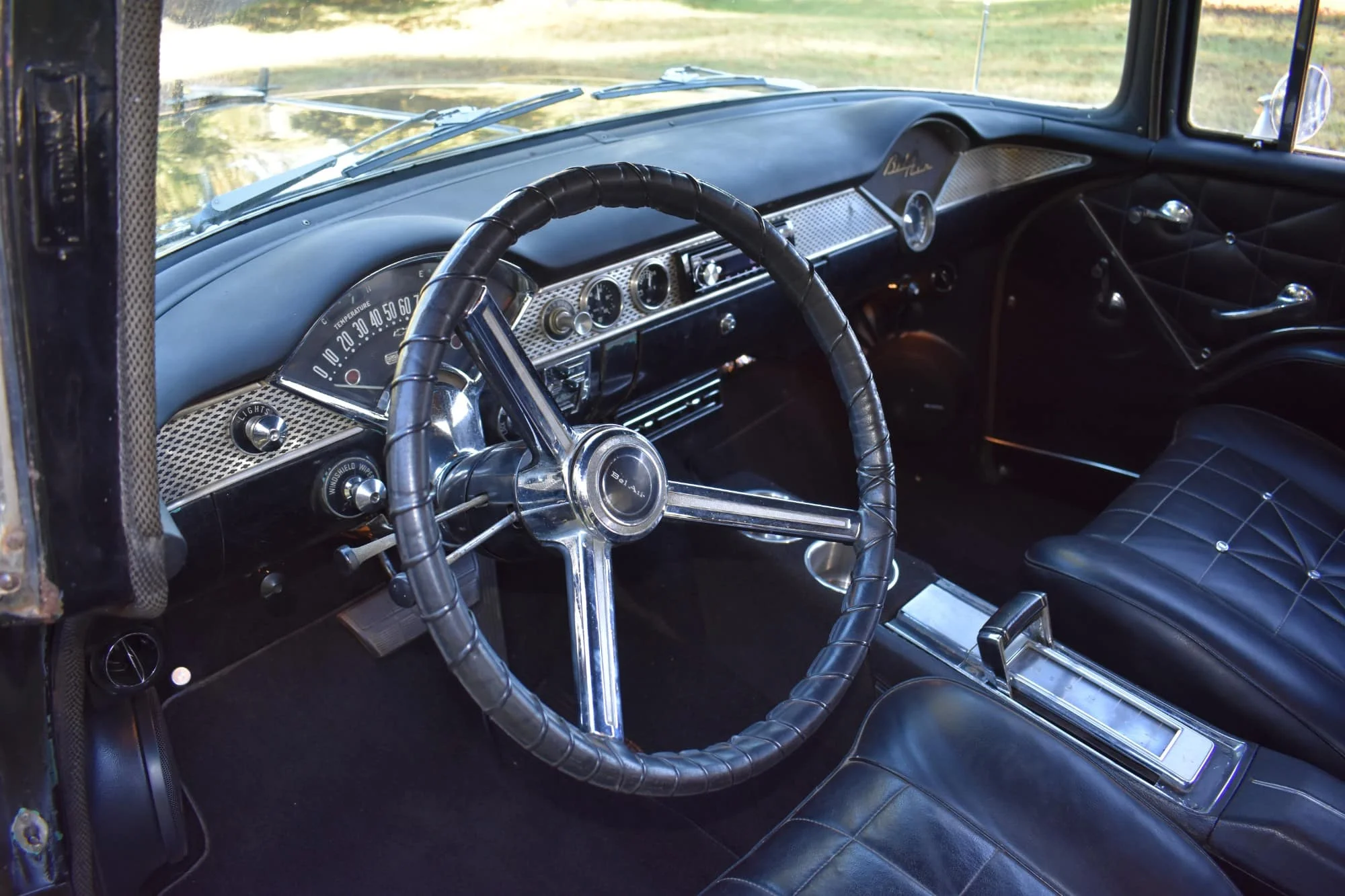

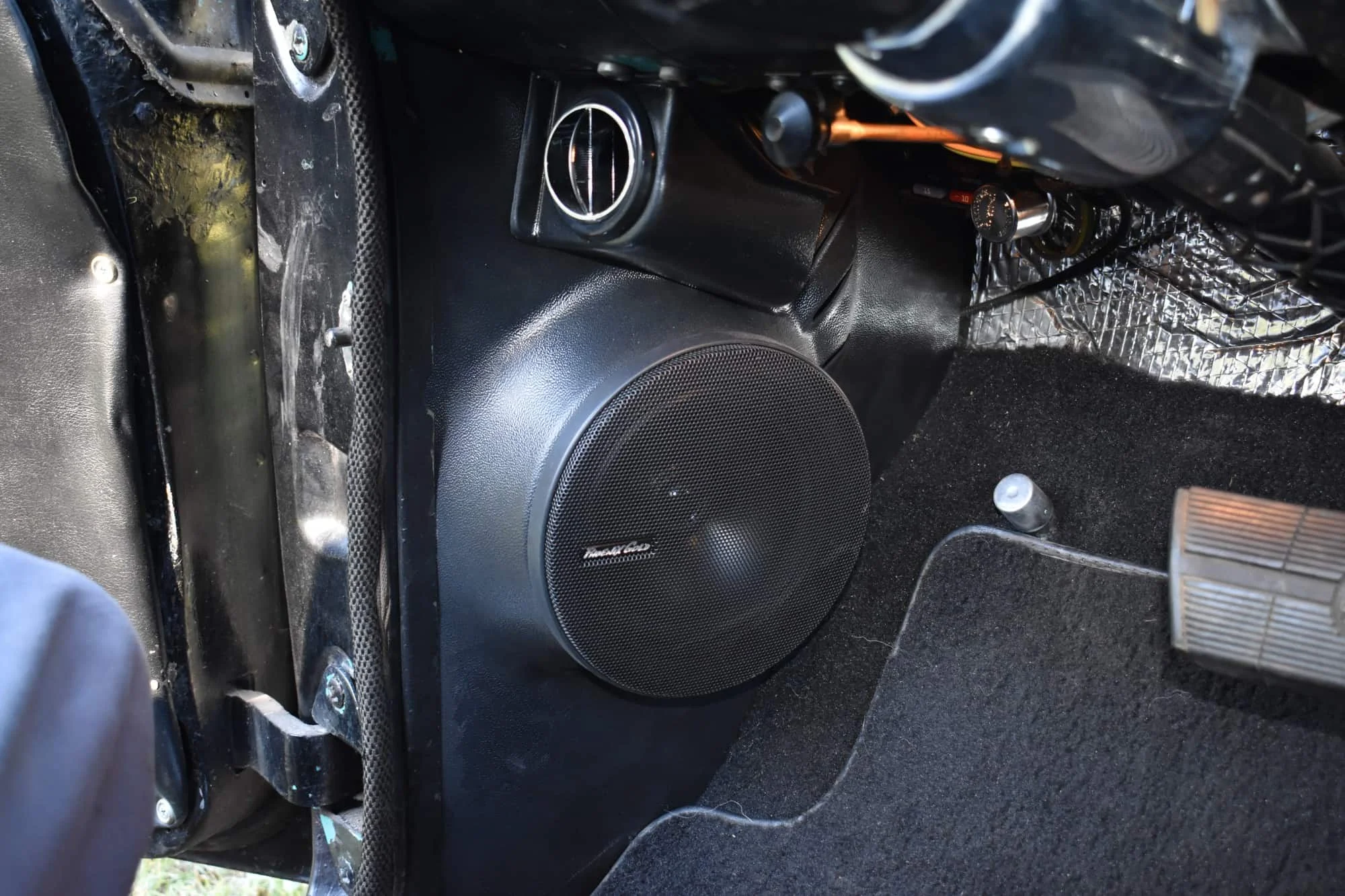

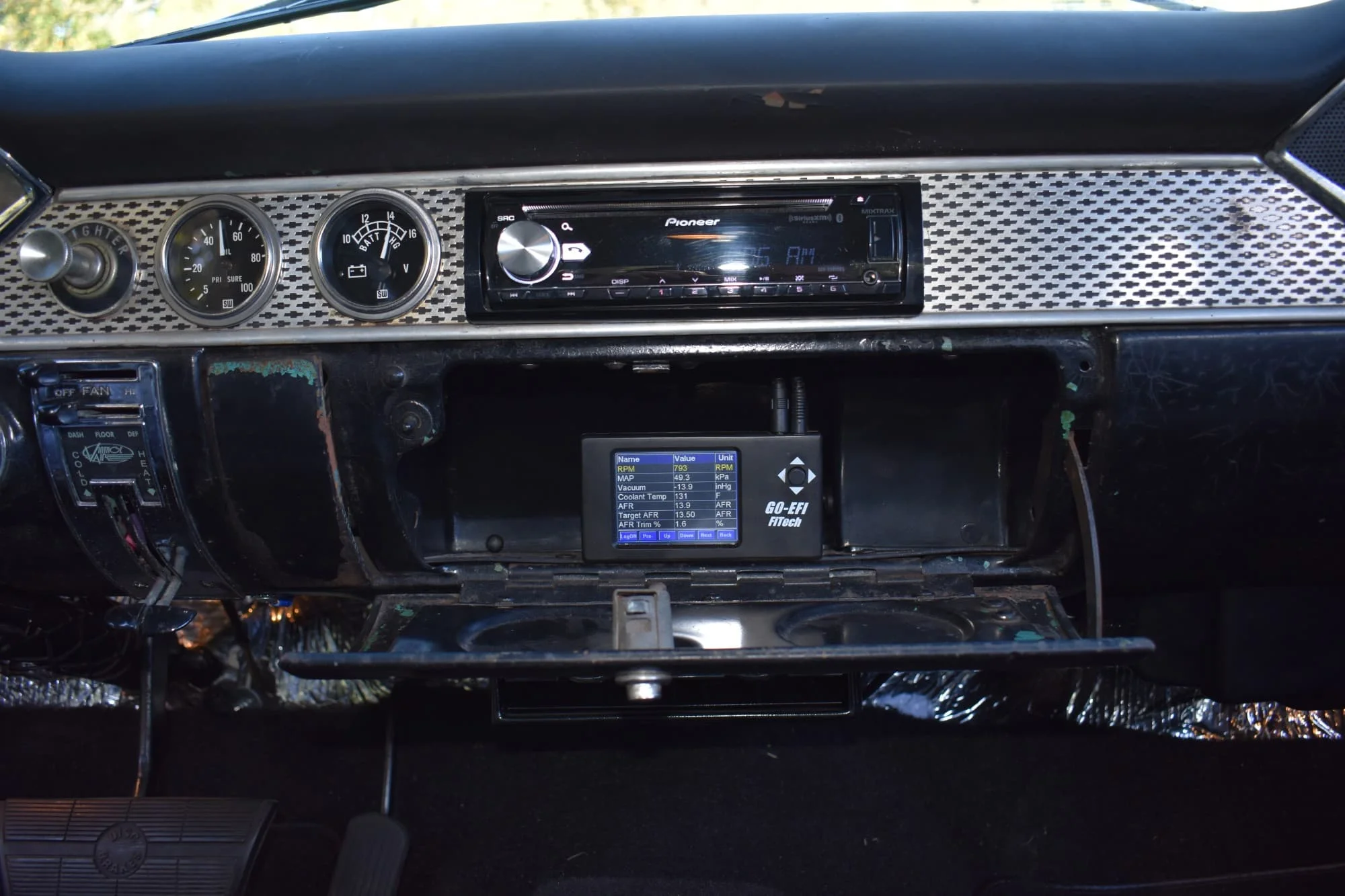

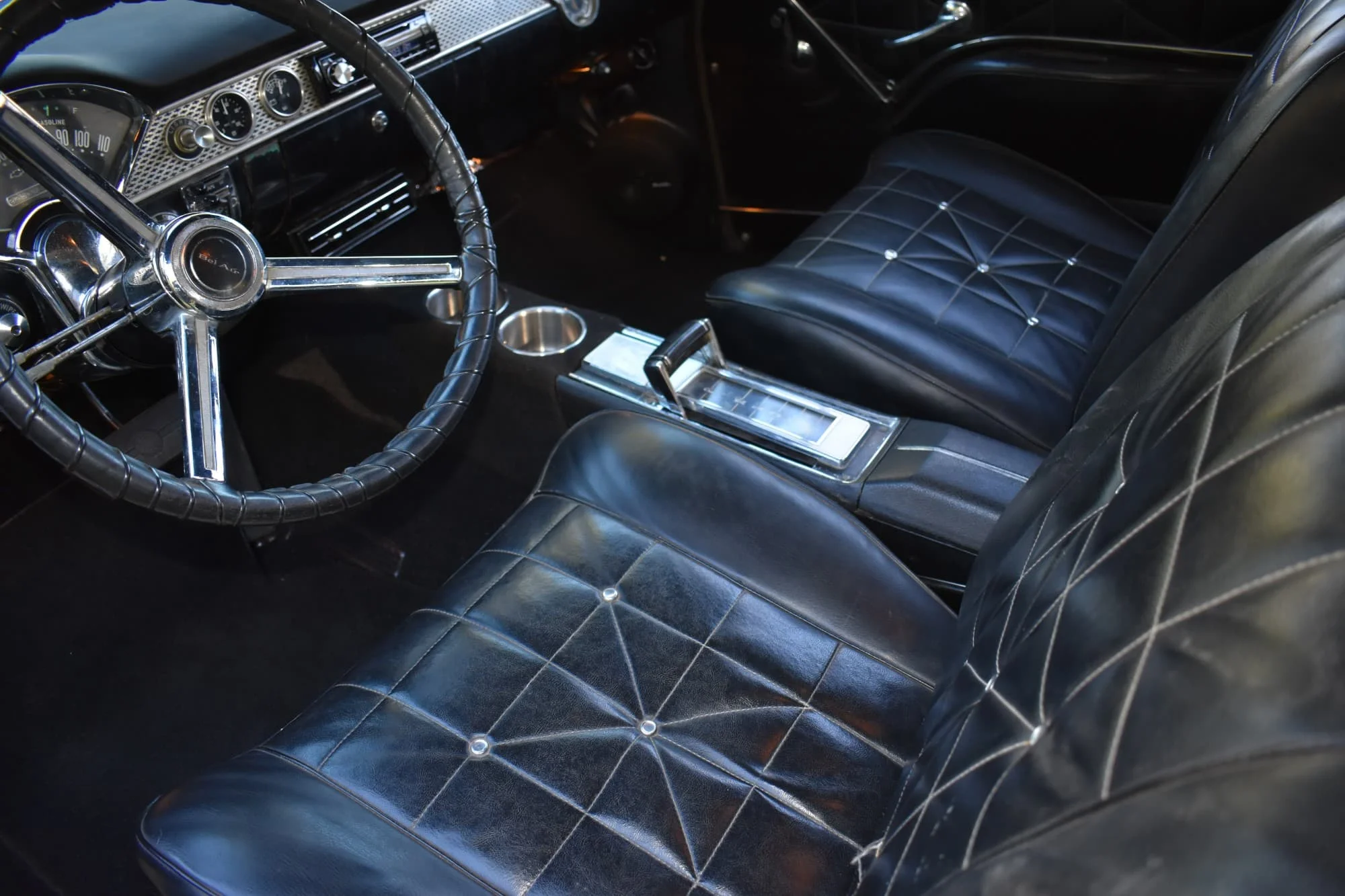

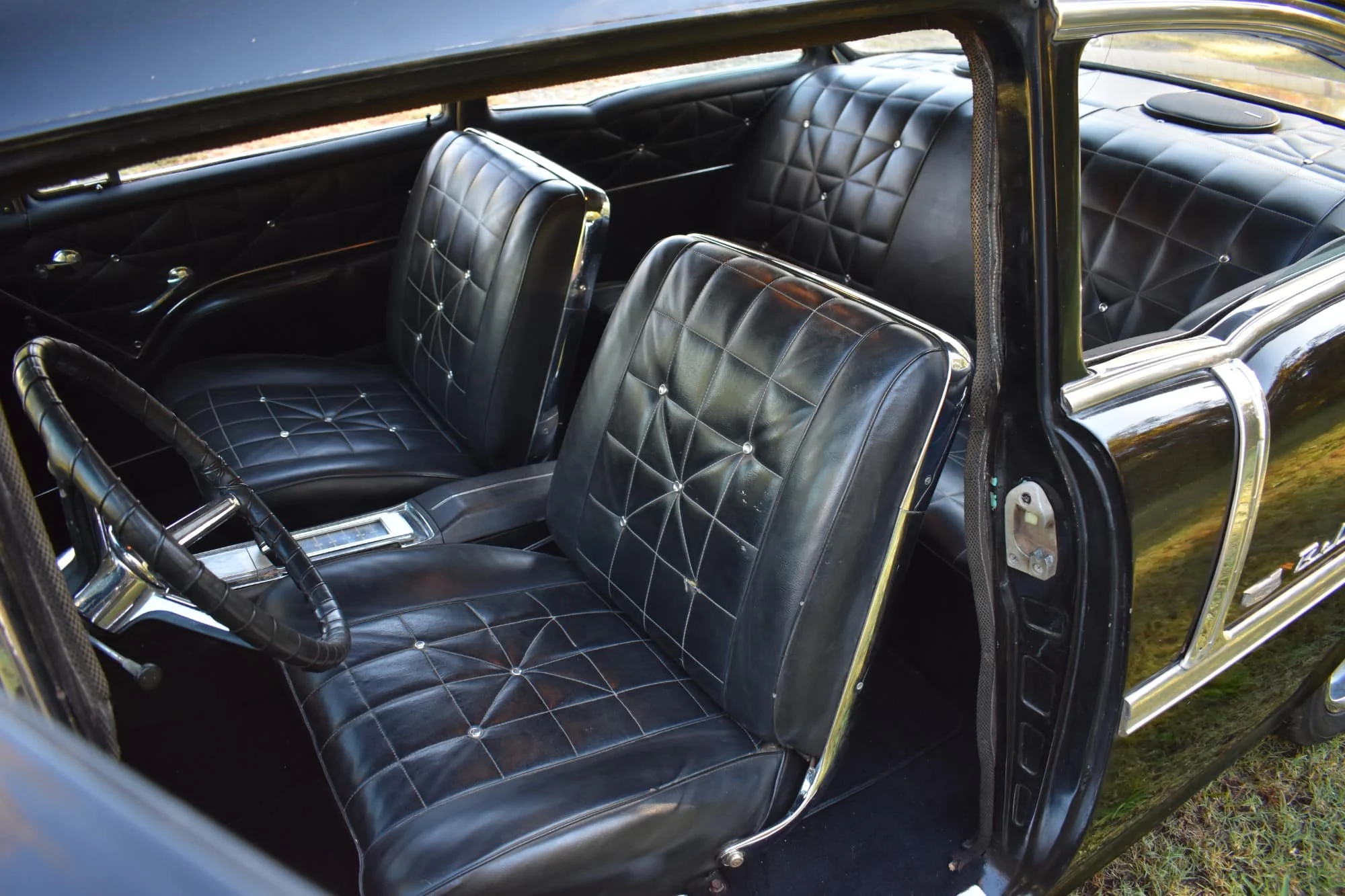

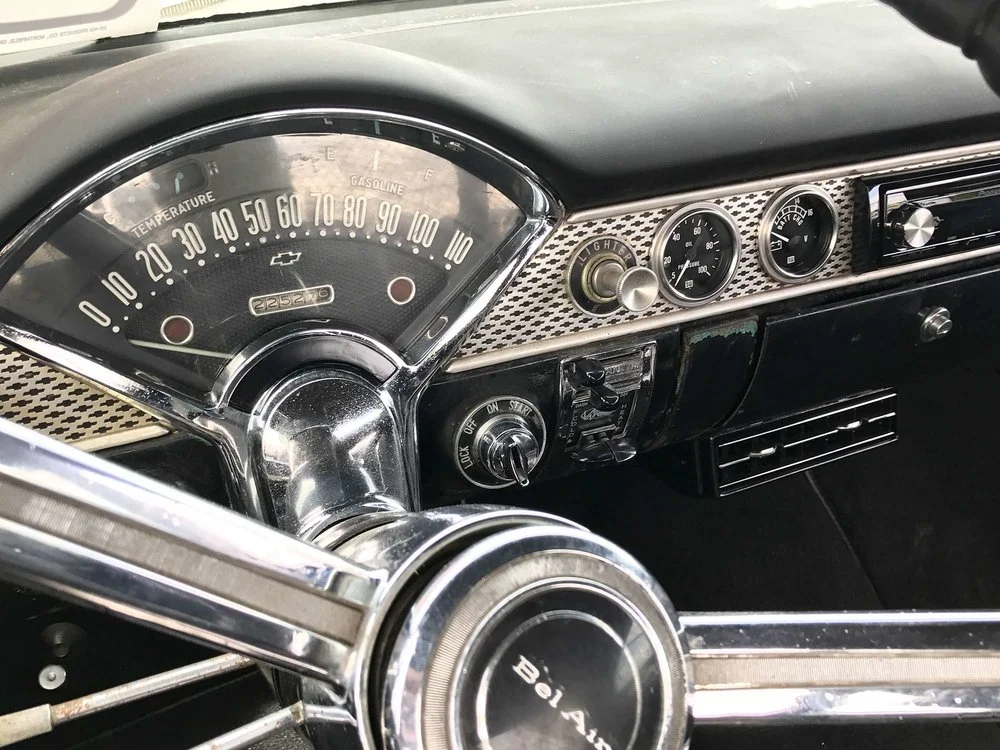

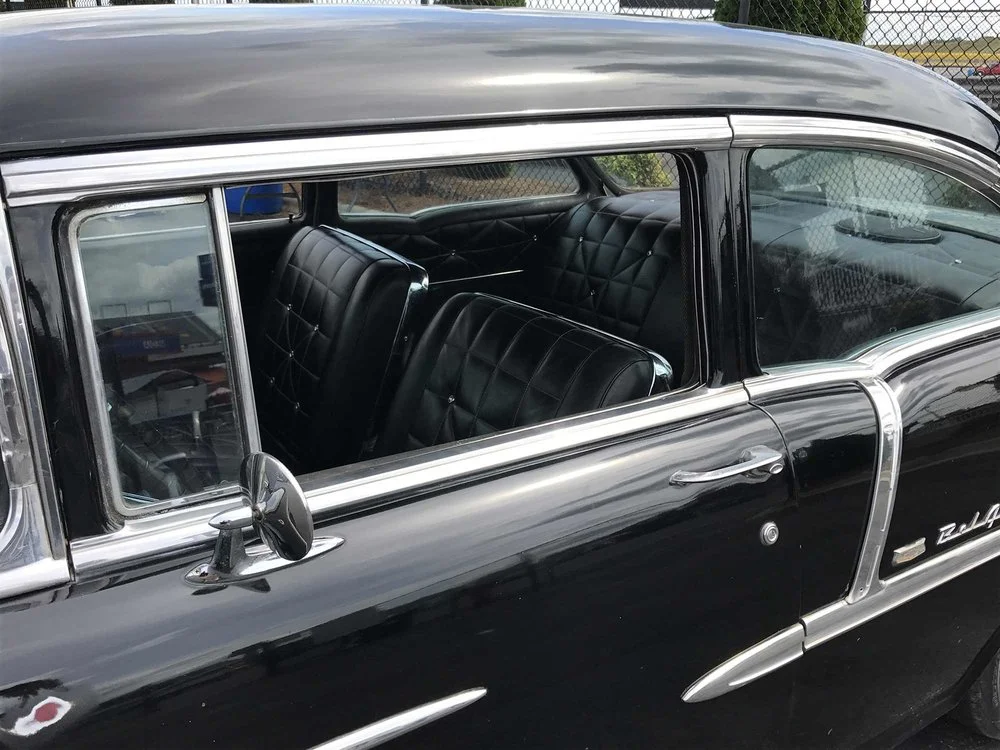

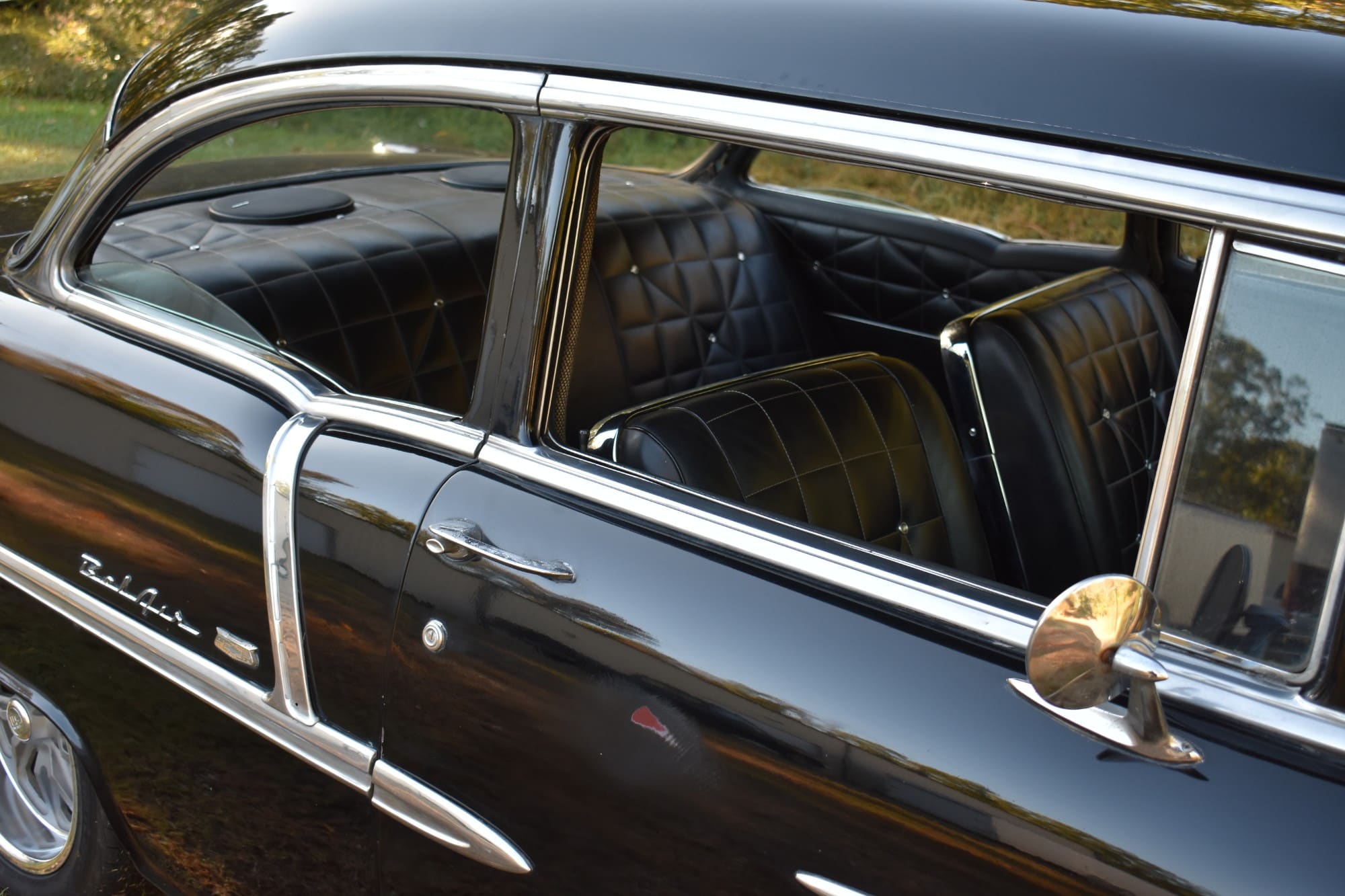

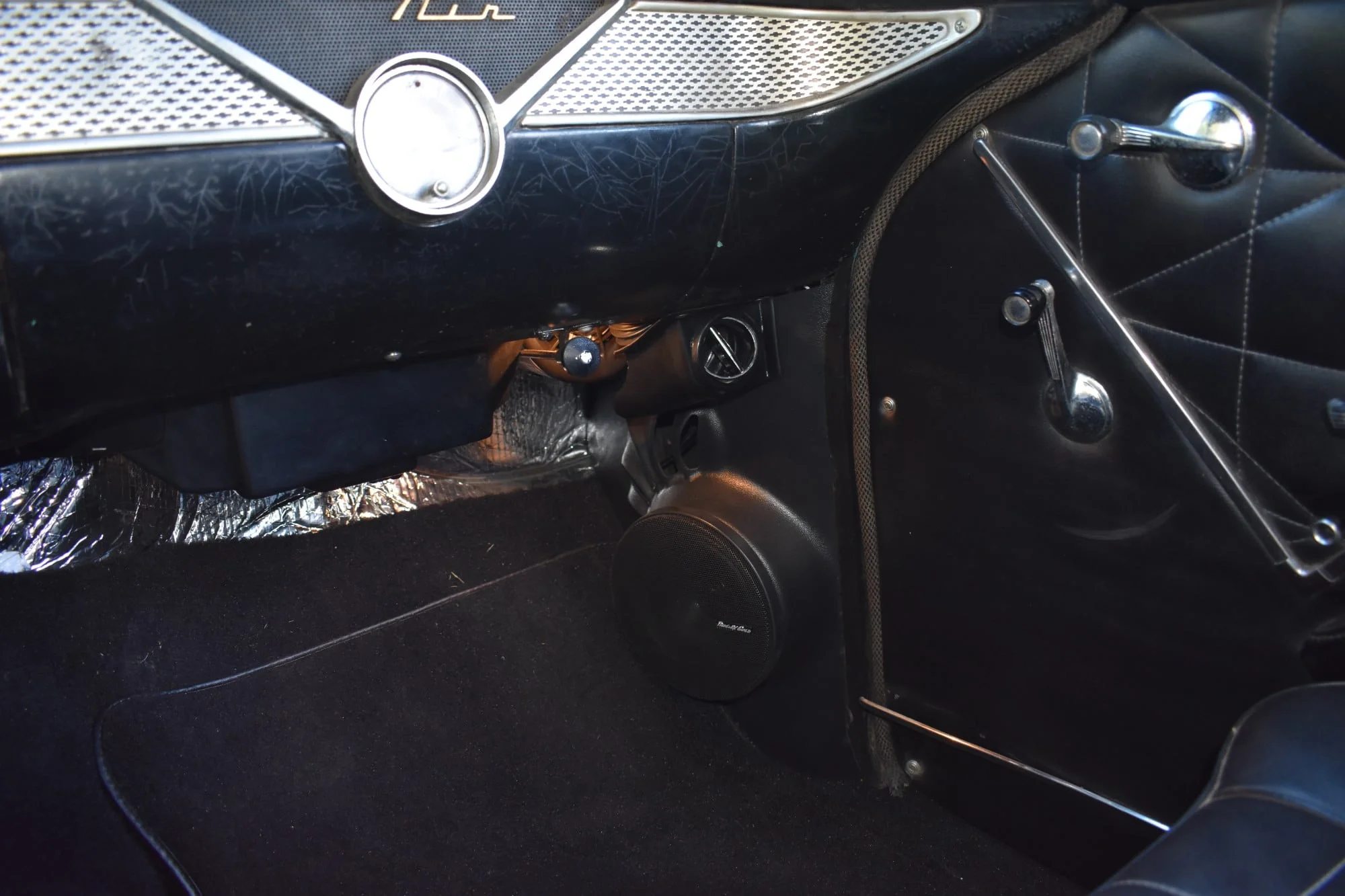

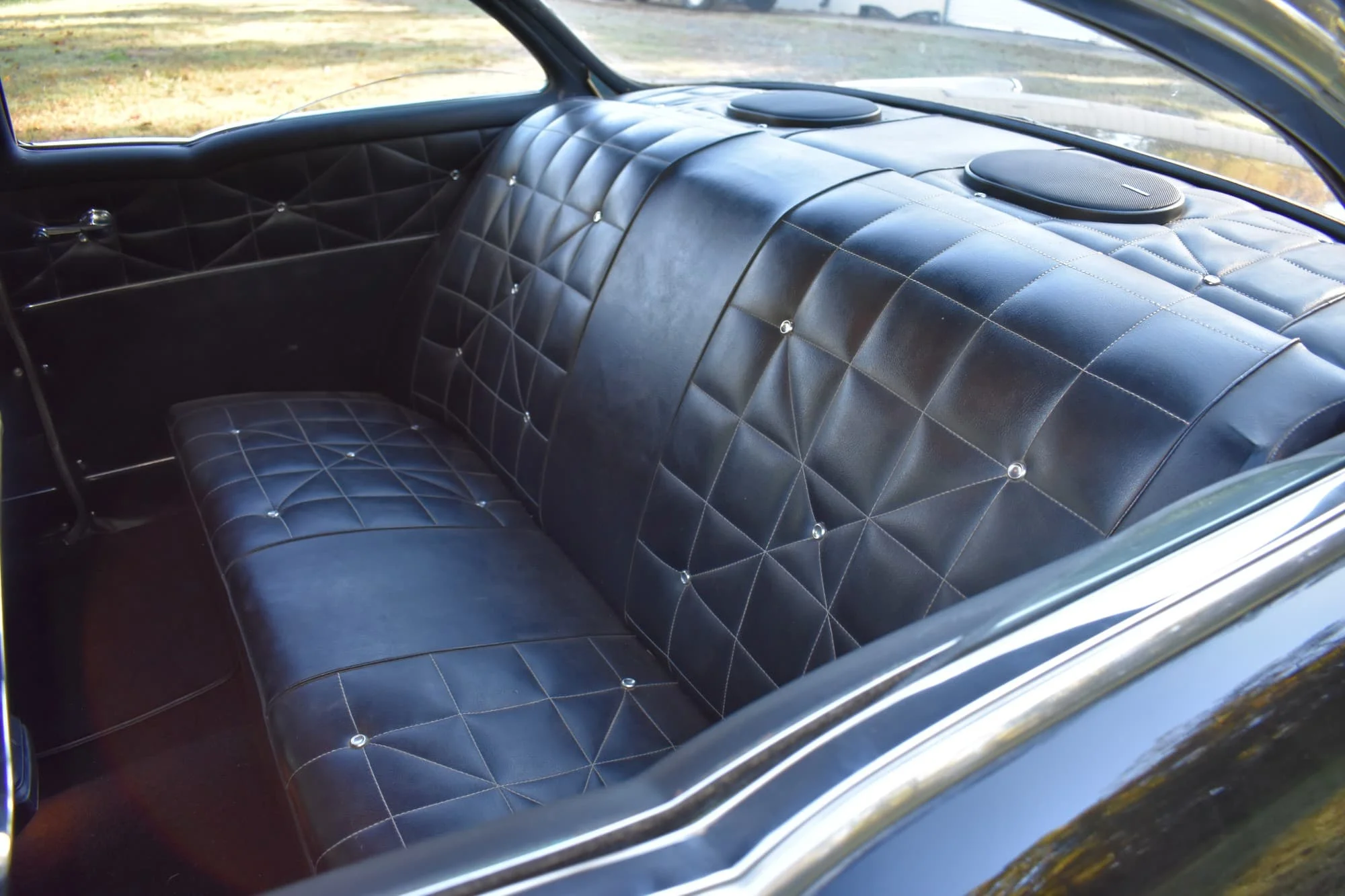

Inside, keeping the theme, is a black molded carpet From Auto Custom Carpets to match an interior package from an early Chevelle installed in a prior customization. Added Stewart Warner instruments update the driver. A Pioneer head unit powers a Phoenix Gold Audio system that consists of 6.5” components up front and 6X9’s in the rear. A Vintage Air Sure Fit Kit for the AC system provides a comfortable ride.
Custom Build Details:
Engine/Drivetrain:
- SBC 350cu in V8
- 700R4 Level 2 FTI Transmission
- March Performance Serpentine Pulley Kit
- Edelbrock Aluminum Intake
- Fi-Tech Fuel Injection System
- High Torque Mini Starter
- Billet Air Cleaner
- ARP Fasteners
- Tubular Shorty Headers

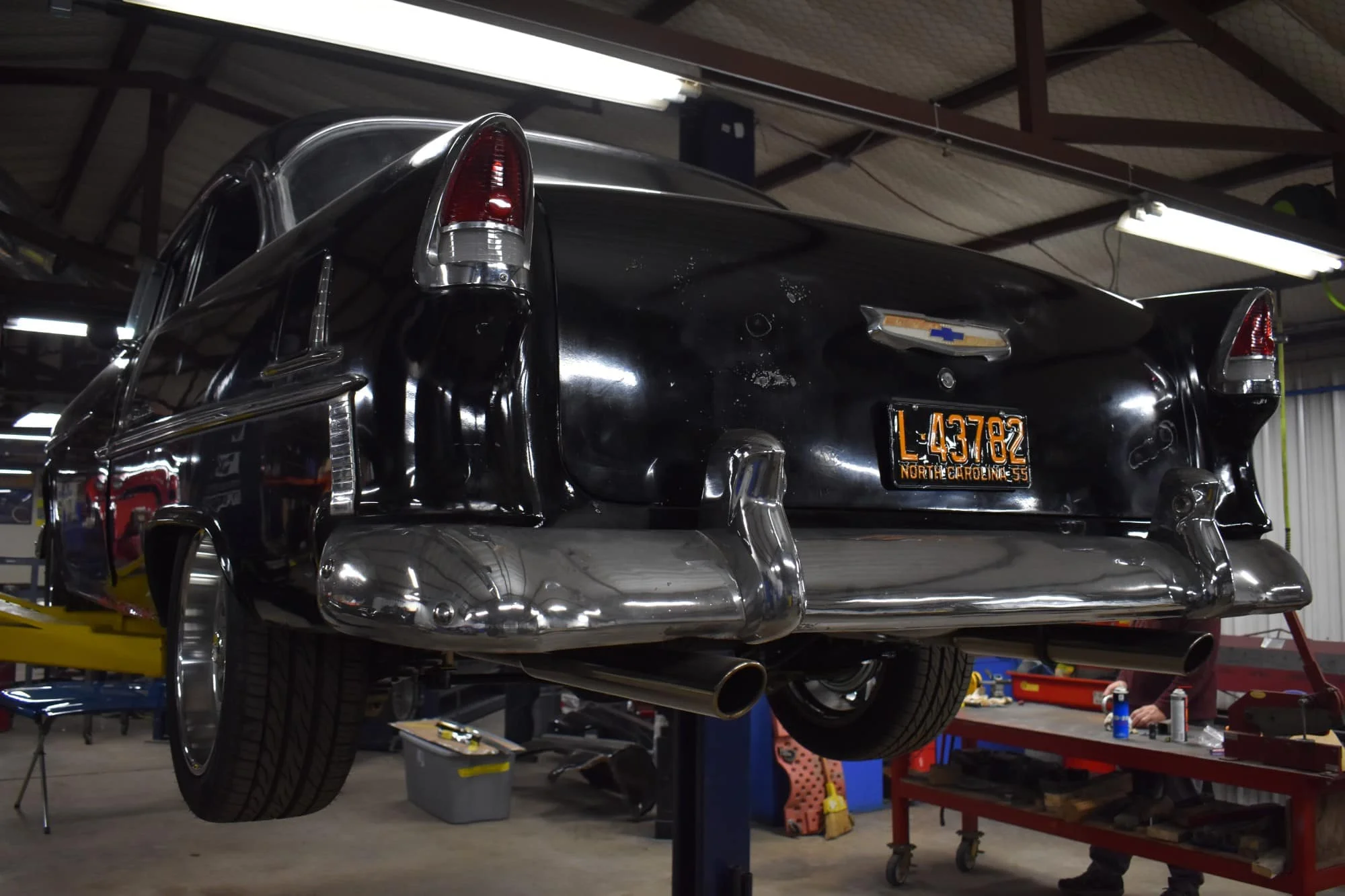

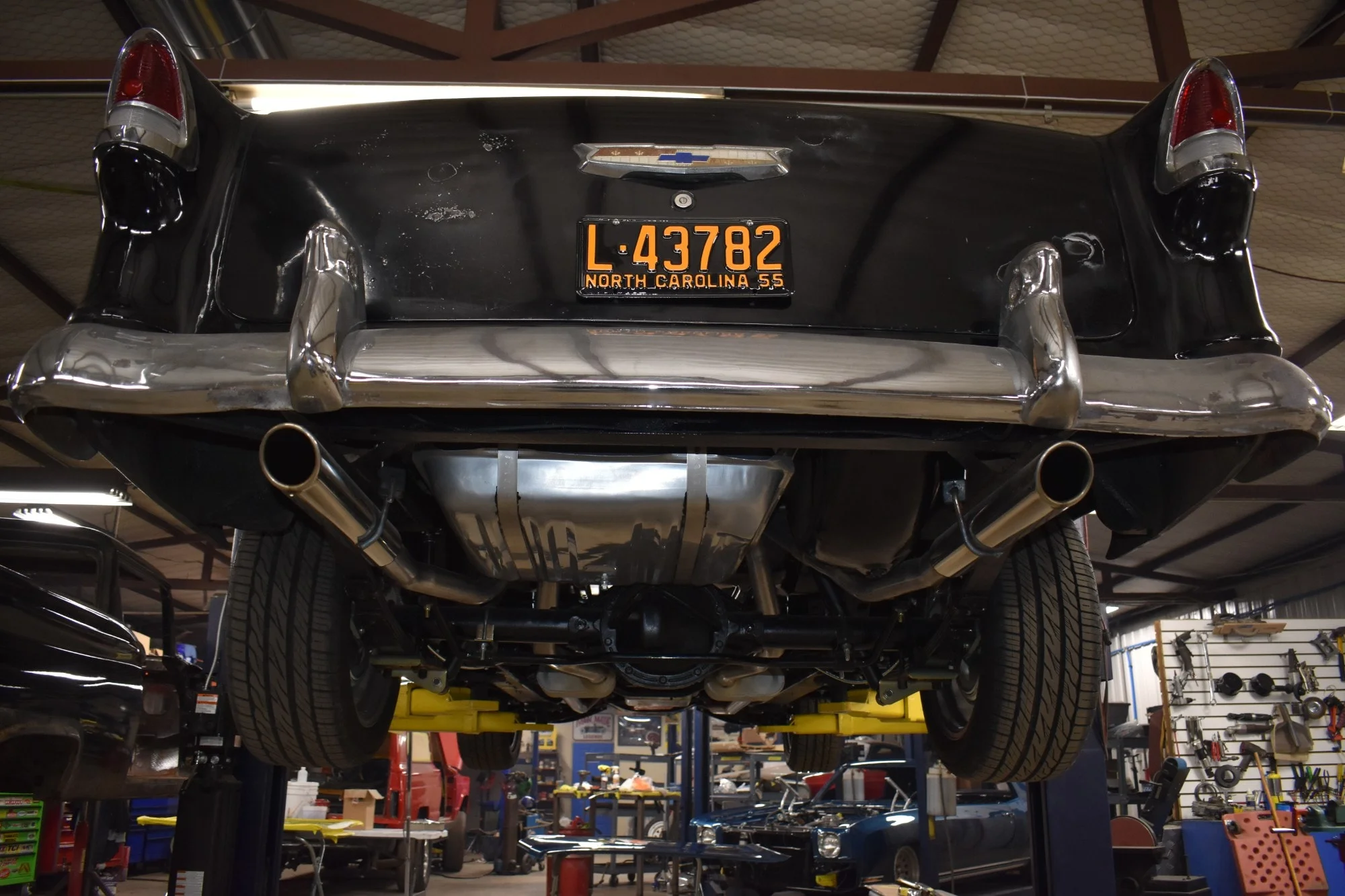

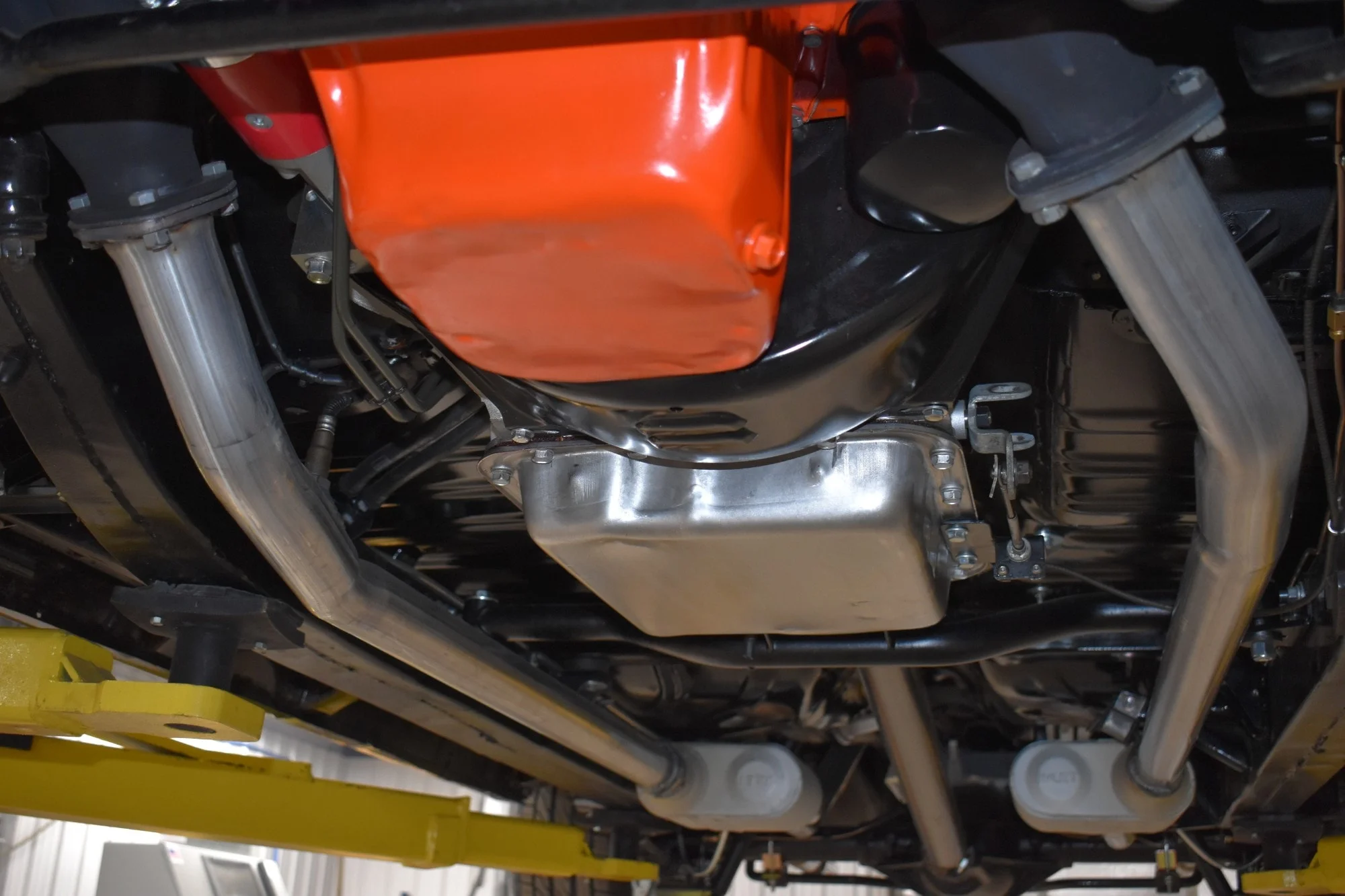

- Custom Dual Exhaust W/3” Tips
- Flowmaster Mufflers

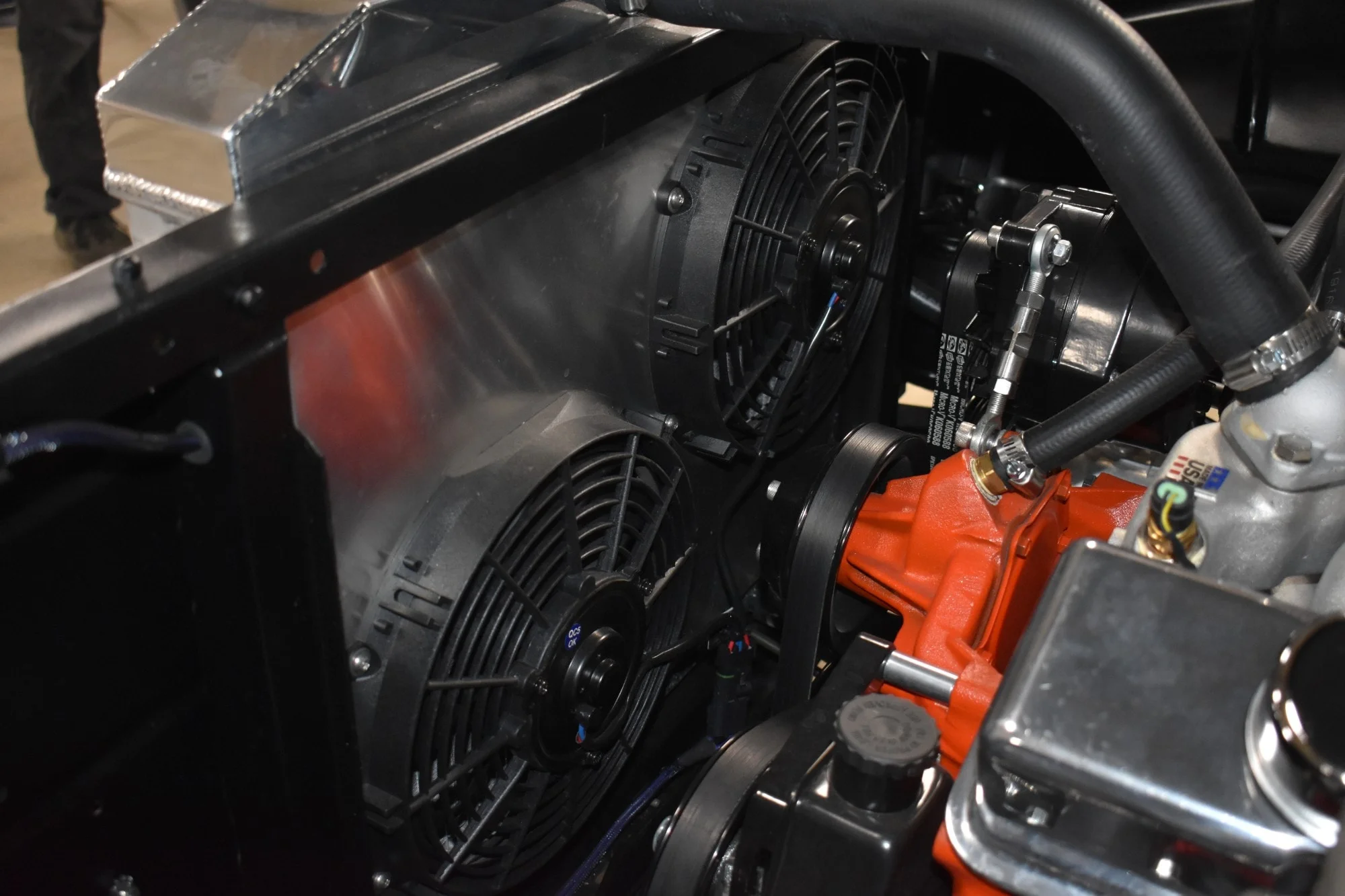

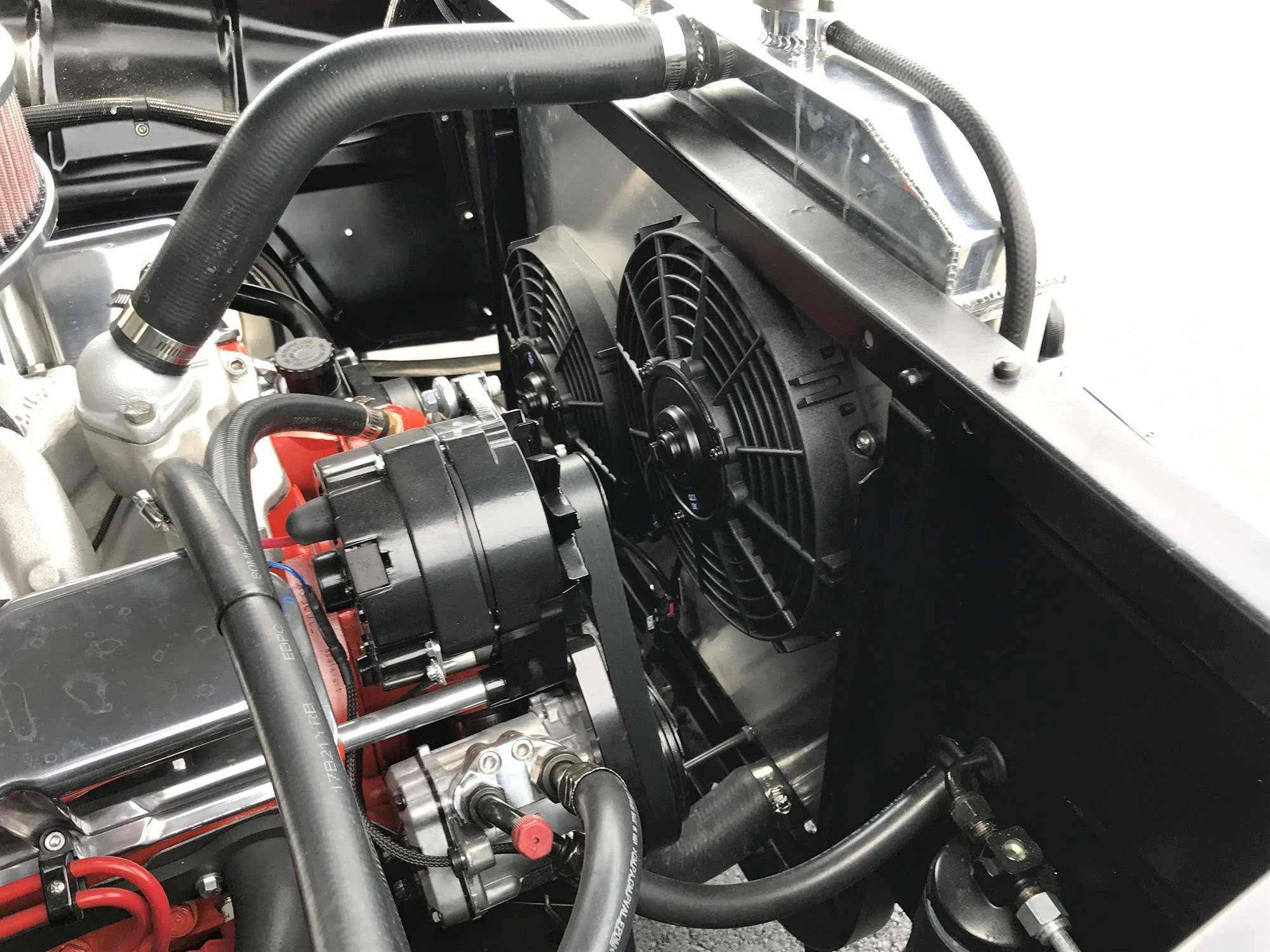

- Griffin Aluminum Radiator w/Spal Fans
- Tank’s INC Fuel Tank
- Tank’s INC High Flow Pump
- Custom Driveshaft

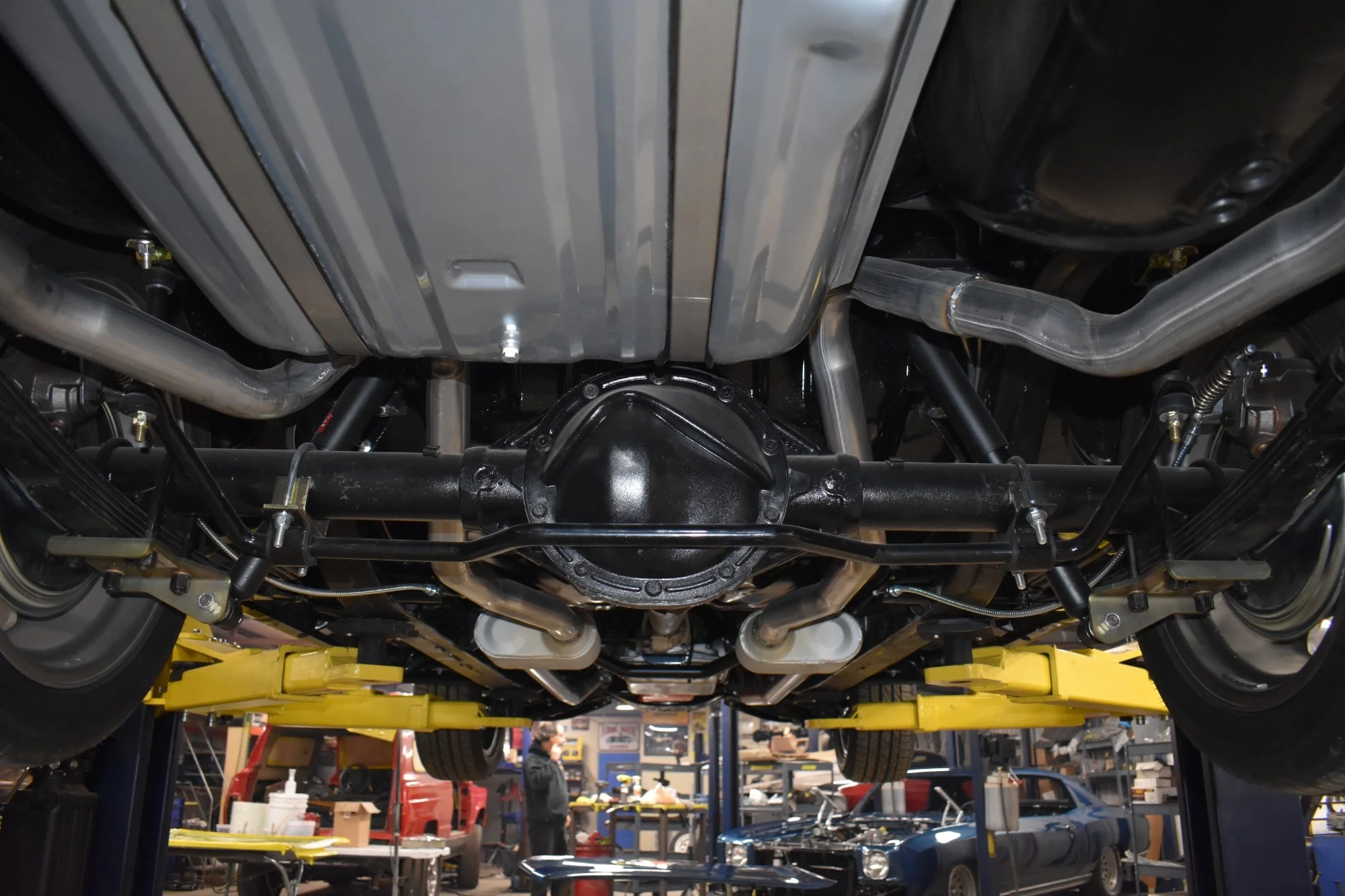

- 1969 Camaro 10 Bolt Rear W/Posi 3:73 Gear
Brakes/Suspension

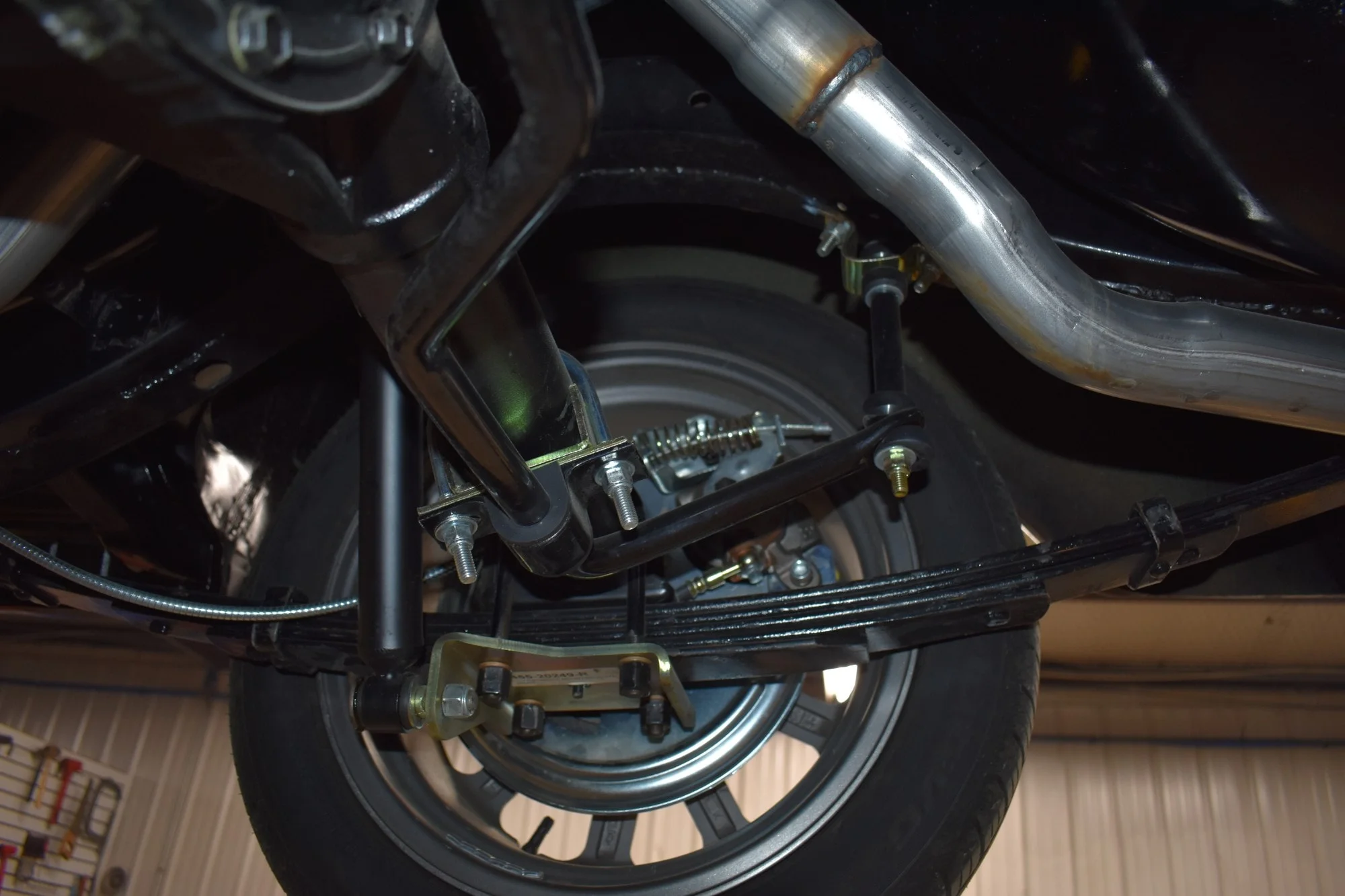

- Front And Rear Disc brake Conversion
- Power Booster And Master Cylinder
- 2” Ultimate Lowering Kit
- Front And Rear Sway Bars

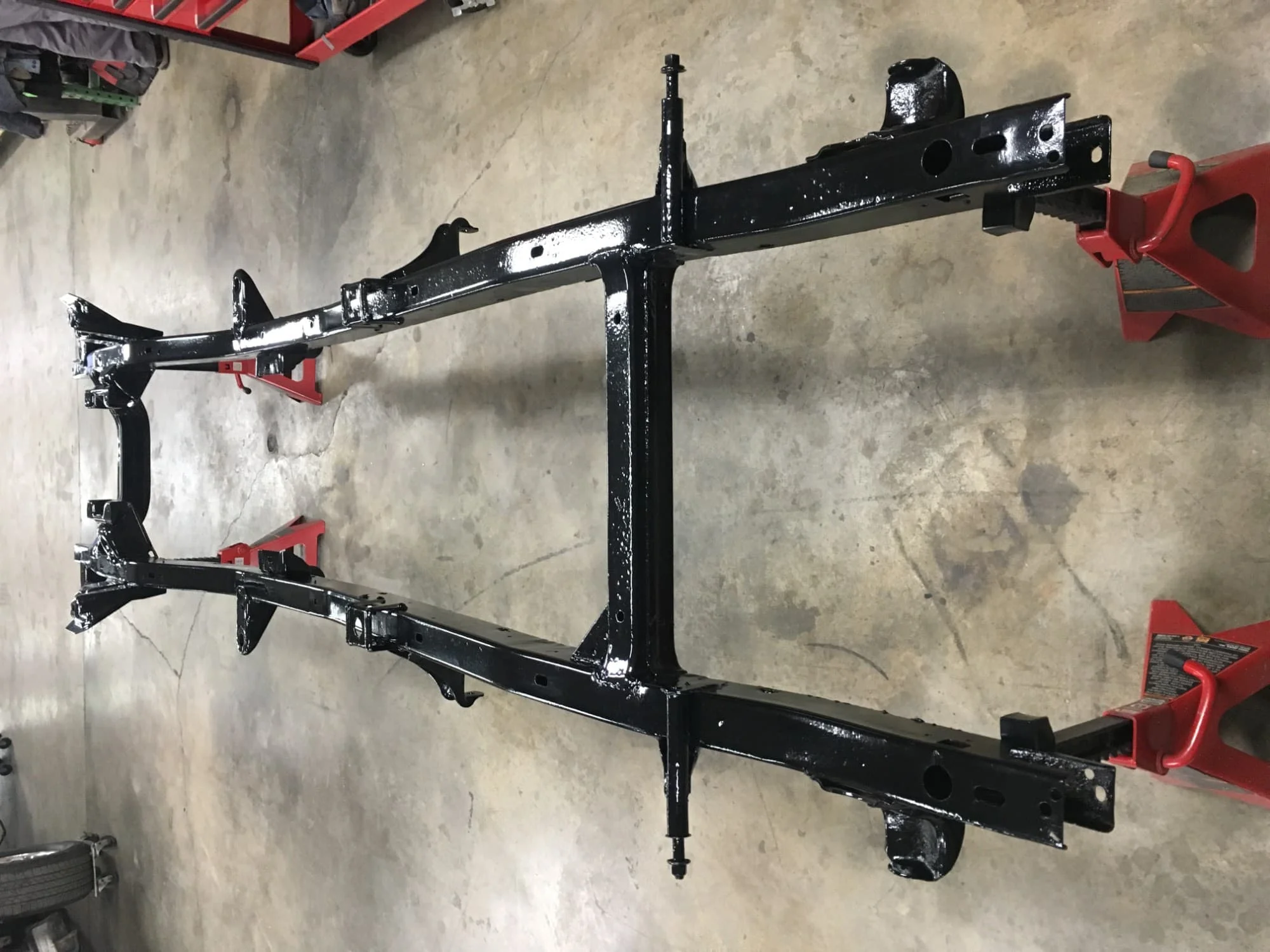

- Gloss Black Painted Chassis
Paint
- Frame Off Partial Restoration
- Soda Blasted Floor And Firewall
- Gloss Black Axalta Coatings Used On Floor And Firewall
- Patina Finished Body
Wheel/Tires
- 17” X 7”, 17” X 8” US MAGS Rambler Wheels
- 225/50ZR 17, 245/45ZR17 Nitto Motivo
Interior
- 60’s Chevelle Interior
- American Auto Wire Harness
- Auto Custom Carpets Black Molded Carpet
- Electric Wiper Conversion
- Vintage Air Sure Fit Kit AC System
- Stewart Warner Gauges
- Pioneer Am/Fm/Cd/Bluetooth Head Unit
- Phoenix Gold 6.5” Coaxial (Front)
- Phoenix Gold 6X9” Coaxial (Rear)
- Stainless Steel Cup Holders

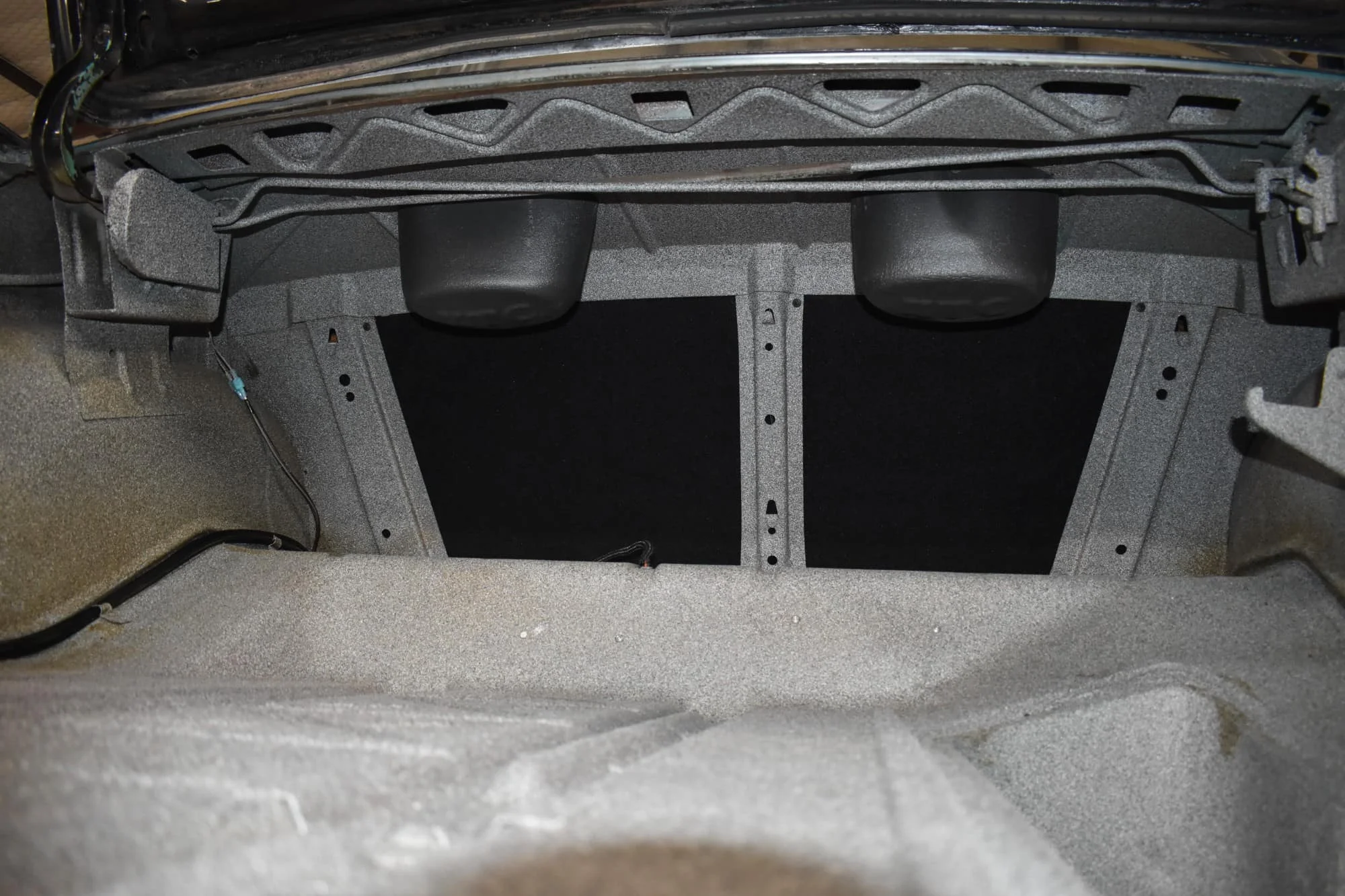

- Gray/Black Splatter painted Trunk
